3D Printing from Imaging: Surgical Planning

Guide to 3D printing applications in orthopaedic surgery including patient-specific models, surgical guides, and custom implants derived from imaging data.

Low Yield
complete
Updated: 2026-01-16
High Yield Overview

3D Printing from Imaging: Surgical Planning

—Source Imaging
—CT (most common)
—File Format
—STL, DICOM
—Slice Thickness
1Less than mm optimal
—Applications
—Models, guides, implants

3D Printing Applications

Anatomical Models: Pre-operative planning, education

Patient-Specific Instruments: Cutting guides, drill guides

Custom Implants: Tumour reconstruction, revision arthroplasty

Key: 3D printing transforms 2D imaging into tangible surgical tools

Critical Must-Knows

  • CT provides best data for 3D printing (bone segmentation)
  • Thin-slice (less than 1mm) CT required for accuracy
  • Patient-specific instruments improve implant positioning
  • Custom implants for complex reconstruction
  • Regulatory requirements for implantable devices

Examiner's Pearls

  • "
    DICOM to STL conversion is the key processing step
  • "
    Segmentation quality determines print accuracy
  • "
    Anatomical models reduce operative time in complex cases
  • "
    PSI can improve component alignment in arthroplasty
Mnemonic

PRINT Workflow

P
Pre-operative planning - Identify need for model/guide
Pre-operative planning - Identify need for model/guide
R
Reconstruction - Thin-slice CT imaging
Reconstruction - Thin-slice CT imaging
I
Image processing - DICOM to STL conversion
Image processing - DICOM to STL conversion
N
Numerical control - 3D printer fabrication
Numerical control - 3D printer fabrication
T
Theatre use - Surgical application
Theatre use - Surgical application

Memory Hook:Remember the 5 stages from image to operating theatre

Mnemonic

STERILE Requirements

S
Sterilisation capability - Gamma or autoclave
Sterilisation capability - Gamma or autoclave
T
Thin slices - Less than 1mm for accuracy
Thin slices - Less than 1mm for accuracy
E
Exact segmentation - Precise anatomical modelling
Exact segmentation - Precise anatomical modelling
R
Regulatory approval - TGA/FDA clearance for implants
Regulatory approval - TGA/FDA clearance for implants
I
Image quality - High-resolution CT data
Image quality - High-resolution CT data
L
Layer height - Printer resolution affects surface finish
Layer height - Printer resolution affects surface finish
E
Education value - Teaching and patient communication
Education value - Teaching and patient communication

Memory Hook:STERILE workflow ensures safe clinical application

Systematic Approach to 3D Printing

The Five-Stage Workflow

Stage 1: Imaging Acquisition

  • Thin-slice CT (less than 1mm) provides optimal data
  • MRI for soft tissue assessment in complex cases
  • DICOM format required for processing

Stage 2: Segmentation and Modelling

  • DICOM to STL conversion
  • Threshold-based bone segmentation
  • Manual refinement for accuracy
  • Quality control checks

Stage 3: Design and Planning

  • Virtual surgical planning
  • Guide design (cutting planes, drill trajectories)
  • Implant templating
  • Sterilisation considerations

Stage 4: Manufacturing

  • Material selection (PLA, nylon, titanium)
  • Printer calibration and quality control
  • Surface finishing for theatre use
  • Sterilisation validation

Stage 5: Clinical Application

  • Pre-operative team briefing with model
  • Intra-operative guide placement
  • Post-operative validation

Critical Requirements

  • Sterilisation: Gamma irradiation or autoclave compatible materials
  • Accuracy: Less than 1mm deviation for implantable devices
  • Documentation: Full traceability from imaging to implant

Clinical Imaging

Imaging Gallery

Antero-posterior and lateral radiographs showing GCT lesions in these 4 cases (A–D), and Case3 (B) had an internal fixation after curettage of the lesion (arrow shows the lesion).
Click to expand
Antero-posterior and lateral radiographs showing GCT lesions in these 4 cases (A–D), and Case3 (B) had an internal fixation after curettage of the lesCredit: Open-i / NIH via Open-i (NIH) (Open Access (CC BY))
GCT lesion located in the MRI and CT scan) The range of resection was recorded and then used as a parameter in design of the proximal tibia block. (A, B) Lesion and its boundary located in the MRI. (B
Click to expand
GCT lesion located in the MRI and CT scan) The range of resection was recorded and then used as a parameter in design of the proximal tibia block. (A,Credit: Open-i / NIH via Open-i (NIH) (Open Access (CC BY))

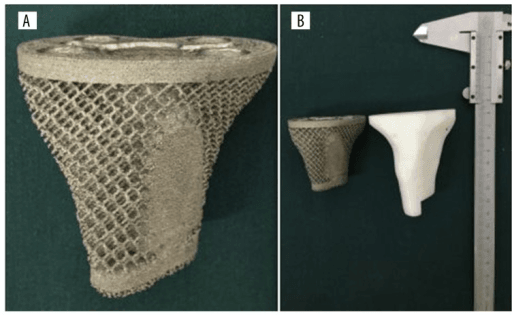

Design of the block. (A) The modified proximal tibia block. (B) 3D-printed model for surgical simulation. (C) Difference between the original case (C1) and the modified one (C2).
Click to expand
Design of the block. (A) The modified proximal tibia block. (B) 3D-printed model for surgical simulation. (C) Difference between the original case (C1Credit: Open-i / NIH via Open-i (NIH) (Open Access (CC BY))
Surgical simulation using 3D-printed model. (A, B) Models of the knee prosthesis and the block. (C) Internal structure of the block.
Click to expand
Surgical simulation using 3D-printed model. (A, B) Models of the knee prosthesis and the block. (C) Internal structure of the block.Credit: Open-i / NIH via Open-i (NIH) (Open Access (CC BY))

Exam Warning

3D printing is an emerging topic with increasing exam relevance. Understand the workflow from imaging to print, key applications (models, PSI, custom implants), and imaging requirements (thin-slice CT). Know the advantages and limitations of this technology.

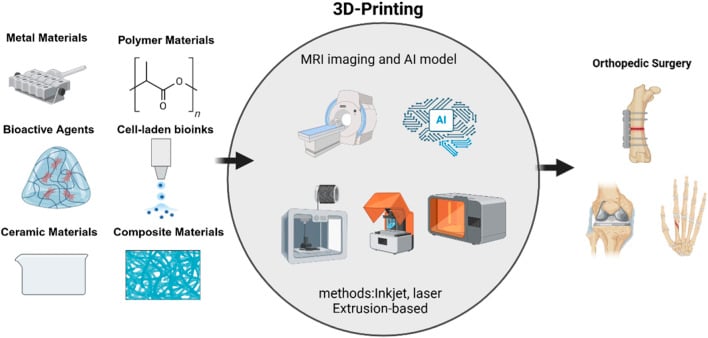

Comprehensive overview of 3D printing in orthopaedic surgery
Click to expand
Comprehensive overview of 3D printing in orthopaedic surgery: Various input materials (metal, polymer, ceramic, bioactive agents, composites) are processed through medical imaging (CT/MRI) and AI modeling using different printing methods (inkjet, laser, extrusion-based) to create orthopaedic implants for hip, knee, and hand reconstruction.Credit: Cong & Zhang, Front Bioeng Biotechnol 2025 - CC-BY 4.0

Workflow Overview

Basic steps of 3D printing workflow for medical applications
Click to expand
Basic steps of 3D printing for medical applications: (1) Develop digital image from patient imaging (CT/MRI), (2) Refine image through segmentation, (3) Translate to STL file format, (4) 3D printer converts STL to G-code, (5) Final print created using G-code parameters.Credit: Giannopoulos et al., JAAOS 2021 - CC-BY 4.0

3D Printing Workflow Steps

StepProcessKey Considerations
1. Image AcquisitionCT/MRI scanThin slices (less than 1mm), minimal artefact
2. DICOM TransferSend to processing softwareAnonymisation, secure transfer
3. SegmentationSeparate structures of interestQuality determines accuracy
4. 3D Model CreationGenerate surface meshSTL file format
5. Design/ModificationAdd guides, cutting slotsEngineering input for instruments
6. PrintingAdditive manufacturingMaterial selection for purpose
7. Post-ProcessingCleaning, sterilisationRegulatory compliance for implants

Segmentation

Segmentation is the process of identifying and separating specific anatomical structures from the imaging data. For bone, thresholding based on Hounsfield units (typically greater than 150-200 HU) can automatically segment cortical bone. Manual refinement is often needed for pathological areas, fracture fragments, or tumour boundaries. Segmentation quality directly affects the accuracy of the final print.

Imaging Requirements

Optimal Imaging Parameters

ParameterRecommendationRationale
ModalityCT preferred for boneSuperior bone-soft tissue contrast
Slice thicknessLess than 1mm (ideally 0.5-0.625mm)Reduces stair-stepping artefact
Field of viewInclude relevant anatomySufficient margins for planning
Metal artefactMARS protocol if hardware presentImproves segmentation accuracy
ContrastUsually unnecessary for boneMay help tumour delineation

Clinical Applications

Anatomical Model Applications

ApplicationBenefitExamples
Pre-operative planning3D visualisation of pathologyComplex fractures, tumour resection
Template/triallingPre-bend plates, trial implantsPelvic fractures, spine deformity
Patient educationTangible explanation of surgeryJoint replacement, deformity correction
Surgical trainingPractice complex proceduresResident education, rare procedures
Intraoperative referenceAnatomical guide in ORTumour margins, fracture reduction

Cost-Benefit

Studies show anatomical models can reduce operative time by 20-30% in complex cases through improved pre-operative planning. The cost of printing is often offset by reduced theatre time. Models are particularly valuable for pelvic and acetabular trauma, complex spine deformity, and tumour surgery.

PSI Applications

ProcedurePSI TypeBenefit
Total knee arthroplastyCutting blocksPotentially improved alignment
Total hip arthroplastyAcetabular guidesCup positioning accuracy
High tibial osteotomyCutting/hinge guidesPrecise correction angle
Tumour resectionCutting guidesAccurate margin achievement
Spinal fusionScrew trajectory guidesSafe pedicle screw placement
Corrective osteotomyCombined cut/reduction guides3D deformity correction

PSI for TKA

Patient-specific cutting guides for TKA are designed from pre-operative CT or MRI. While early studies suggested improved alignment, recent meta-analyses show variable results. PSI may reduce outliers in mechanical axis alignment but overall clinical outcomes are similar to conventional instrumentation. PSI reduces instrument trays and may streamline theatre workflow.

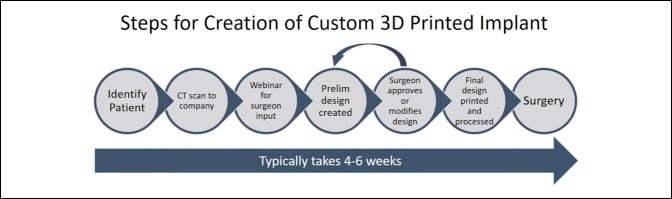

Steps for creation of custom 3D printed implant
Click to expand
Custom implant design workflow: Patient identification, CT scan to company, surgeon input via webinar, preliminary design created, surgeon approval/modification cycle, final design printed and processed, then surgery. The entire process typically takes 4-6 weeks from imaging to implantation.Credit: Giannopoulos et al., JAAOS 2021 - CC-BY 4.0

Custom Implant Applications

IndicationImplant TypeAdvantage
Large bone defectsCustom porous cagesFills defect, allows ingrowth
Tumour reconstructionCustom prosthesisMatches resection geometry
Revision arthroplastyCustom acetabular componentAddresses bone loss
Limb salvageIntercalary prosthesisPreserves joint function
Spinal tumourCustom vertebral bodyAnatomical reconstruction

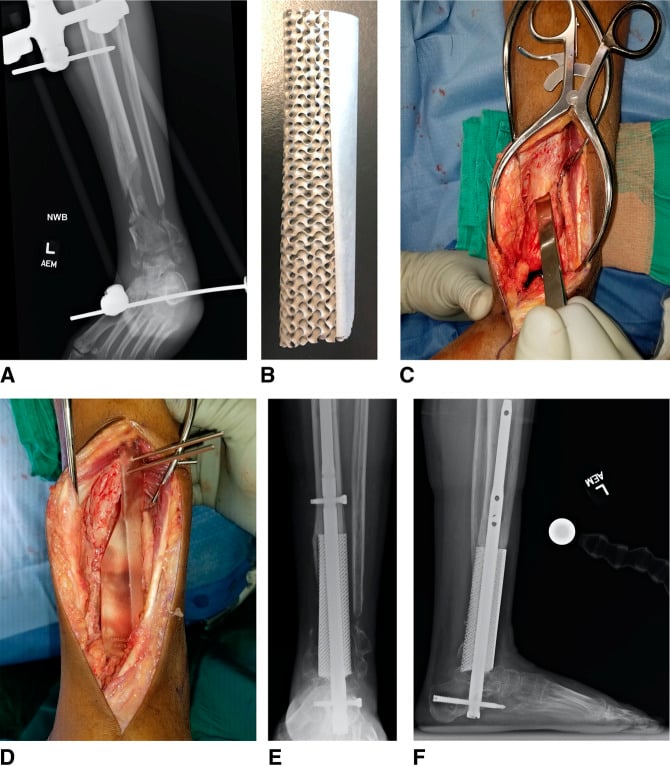

Clinical case of tibial bone defect reconstruction with 3D printed implant
Click to expand
Clinical case demonstrating 3D printed implant for tibial reconstruction: (A) Pre-operative lateral X-ray showing bone defect with external fixator in place, (B) Custom 3D printed porous titanium mesh implant designed to fill the defect, (C-D) Intraoperative photos showing implant insertion, (E-F) Post-operative AP and lateral X-rays confirming implant positioning.Credit: Giannopoulos et al., JAAOS 2021 - CC-BY 4.0

Regulatory Considerations

Custom implantable devices are subject to regulatory oversight (TGA in Australia). The manufacturing process must be validated, materials must be biocompatible, and sterility must be ensured. Most custom implants are manufactured by specialised companies with regulatory approval. Point-of-care printing of implants requires appropriate quality management systems.

Printing Technologies

3D Printing Technologies in Orthopaedics

TechnologyMechanismApplications
FDM (Fused Deposition)Extruded thermoplasticAnatomical models, low-cost
SLA (Stereolithography)UV-cured resinHigh detail models, surgical guides
SLS (Selective Laser Sintering)Laser-fused powderDurable guides, nylon models
DMLS (Direct Metal Laser Sintering)Metal powder laser fusionTitanium implants
EBM (Electron Beam Melting)Metal powder electron beamPorous metal implants

Material Selection

Material choice depends on application: PLA/ABS plastics for anatomical models, biocompatible resins for surgical guides, and titanium alloys (Ti6Al4V) for implantable devices. Porous titanium structures can be designed to match bone modulus and promote osseointegration.

Quality Assurance

Quality Considerations

AspectRequirementVerification
Dimensional accuracyLess than 1mm deviationCalliper measurement, CT comparison
Anatomical fidelityMatches patient anatomyOverlay on source CT
SterilisationAppropriate for OR useValidated sterilisation process
Material biocompatibilityNon-toxic, implant gradeMaterial certification
Structural integrityWithstands intended useMechanical testing

Accuracy Validation

Studies show 3D printed anatomical models typically achieve dimensional accuracy within 0.5-1mm of the source CT data. Accuracy depends on segmentation quality, printer resolution, and post-processing. For surgical guides and implants, verification against the original imaging data is essential before clinical use.

Limitations

Current Limitations

LimitationExplanationMitigation
TimeDays to weeks for complex printsEarly planning, in-house printing
CostEquipment, materials, expertiseCase selection, shared services
Imaging artefactMetal hardware degrades segmentationMARS protocols, manual editing
Regulatory complexityEspecially for custom implantsPartner with approved manufacturers
Learning curveSegmentation and design skillsTraining, dedicated staff

Point-of-Care Printing

Hospital-based (point-of-care) 3D printing allows rapid turnaround and lower costs for anatomical models. However, it requires significant infrastructure, expertise, and quality management. For implantable devices, regulatory requirements generally necessitate partnership with certified manufacturers.

Evidence Base

Landmark Studies

Clinical Applications of 3D Printing in Orthopaedic Surgery

1

2

3

Australian Evidence

4

Key Points

  • Pre-operative planning: Level I evidence supports reduced operative time and improved accuracy
  • Patient-specific guides: Custom cutting guides improve precision in deformity correction
  • Anatomical models: Enhance surgeon understanding and patient communication
  • Regulatory landscape: Evolving framework for point-of-care manufacturing

Exam Viva Scenarios

Practice these scenarios to excel in your viva examination

VIVA SCENARIOStandard

EXAMINER

"You are planning surgery for a complex acetabular fracture. How might 3D printing assist your pre-operative planning?"

EXCEPTIONAL ANSWER
Workflow: (1) Obtain thin-slice CT (less than 1mm) of the pelvis including the contralateral hip for reference. (2) Transfer DICOM data to segmentation software. (3) Segment the fractured acetabulum and separate fracture fragments. (4) Generate STL file of the bone model. (5) Print in appropriate material (PLA or resin). Benefits for acetabular fracture: (6) Visualise fracture pattern in 3D - understand fragment displacement. (7) Pre-contour reconstruction plates on the model - saves intraoperative time. (8) Plan surgical approach - identify which fragments are accessible. (9) Trial reduction - practice fragment manipulation. (10) Mirror the contralateral normal hip if needed for template. Studies show reduced operative time and blood loss with 3D printed planning for complex acetabular fractures.
KEY POINTS TO SCORE
Thin-slice CT (less than 1mm) essential for accuracy
Segmentation quality determines model accuracy
Pre-contour plates on printed model
Practice reduction technique
Reduces operative time 20-30%
COMMON TRAPS
✗Using inadequate CT slice thickness
✗Poor segmentation missing fracture lines
✗Not allowing sufficient time for printing
VIVA SCENARIOStandard

EXAMINER

"A patient requires resection of a pelvic chondrosarcoma with reconstruction. How can 3D printing technology assist?"

EXCEPTIONAL ANSWER
Multiple applications: (1) Anatomical model - precise 3D visualisation of tumour extent, relationship to vital structures, and planned resection margins. (2) Cutting guides - patient-specific guides to achieve planned resection margins accurately. These are designed with slots that match the planned bone cuts. (3) Custom implant - design a reconstruction implant that matches the exact geometry of the resection defect. Can incorporate porous structure for bone ingrowth and attachment points for soft tissue. (4) Template - pre-contour plates or plan screw trajectories on the model. (5) Patient education - explain the surgery using the model. Workflow: CT/MRI for planning, multi-disciplinary review, design cutting guides and implant, manufacture (weeks lead time), sterilise, intraoperative use. Custom implants require regulatory-approved manufacturing partners.
KEY POINTS TO SCORE
Anatomical model shows tumour-structure relationships
Cutting guides ensure accurate margins
Custom implant matches resection geometry
Requires weeks of lead time for design and manufacture
Implants need regulatory-approved manufacturing
COMMON TRAPS
✗Not allowing sufficient lead time
✗Inadequate imaging for tumour margin delineation
✗Using non-approved manufacturers for implants
VIVA SCENARIOStandard

EXAMINER

"You are considering patient-specific instruments (PSI) for a complex total knee replacement in a patient with severe extra-articular deformity from a malunited tibial fracture."

EXCEPTIONAL ANSWER
PSI for complex TKA: In this case with extra-articular deformity, conventional intramedullary instruments cannot be used due to the malunited fracture. PSI advantages: (1) Reference off the bone surface rather than the medullary canal. (2) Pre-operatively planned cuts based on CT reconstruction. (3) Account for the deformity in the planning software. (4) Guides with specific cut angles and depths. (5) May avoid simultaneous corrective osteotomy in some cases. Process: CT scan (specific protocol), planning with software, design guides for femur and tibia, manufacture, sterilise. Limitations: (6) Additional cost and lead time. (7) Relies on accurate CT and planning. (8) Cannot adjust intraoperatively as easily as conventional instruments. (9) Soft tissue balancing still required. For severe extra-articular deformity, PSI is particularly valuable as conventional referencing is unreliable.
KEY POINTS TO SCORE
PSI references bone surface, not medullary canal
Useful when conventional instruments cannot be used
Pre-planned cut angles account for deformity
Cannot adjust easily intraoperatively
Soft tissue balancing still required
COMMON TRAPS
✗Assuming PSI eliminates all technical challenges
✗Not having backup conventional instruments
✗Inadequate soft tissue balancing

3D Printing Quick Reference

High-Yield Exam Summary

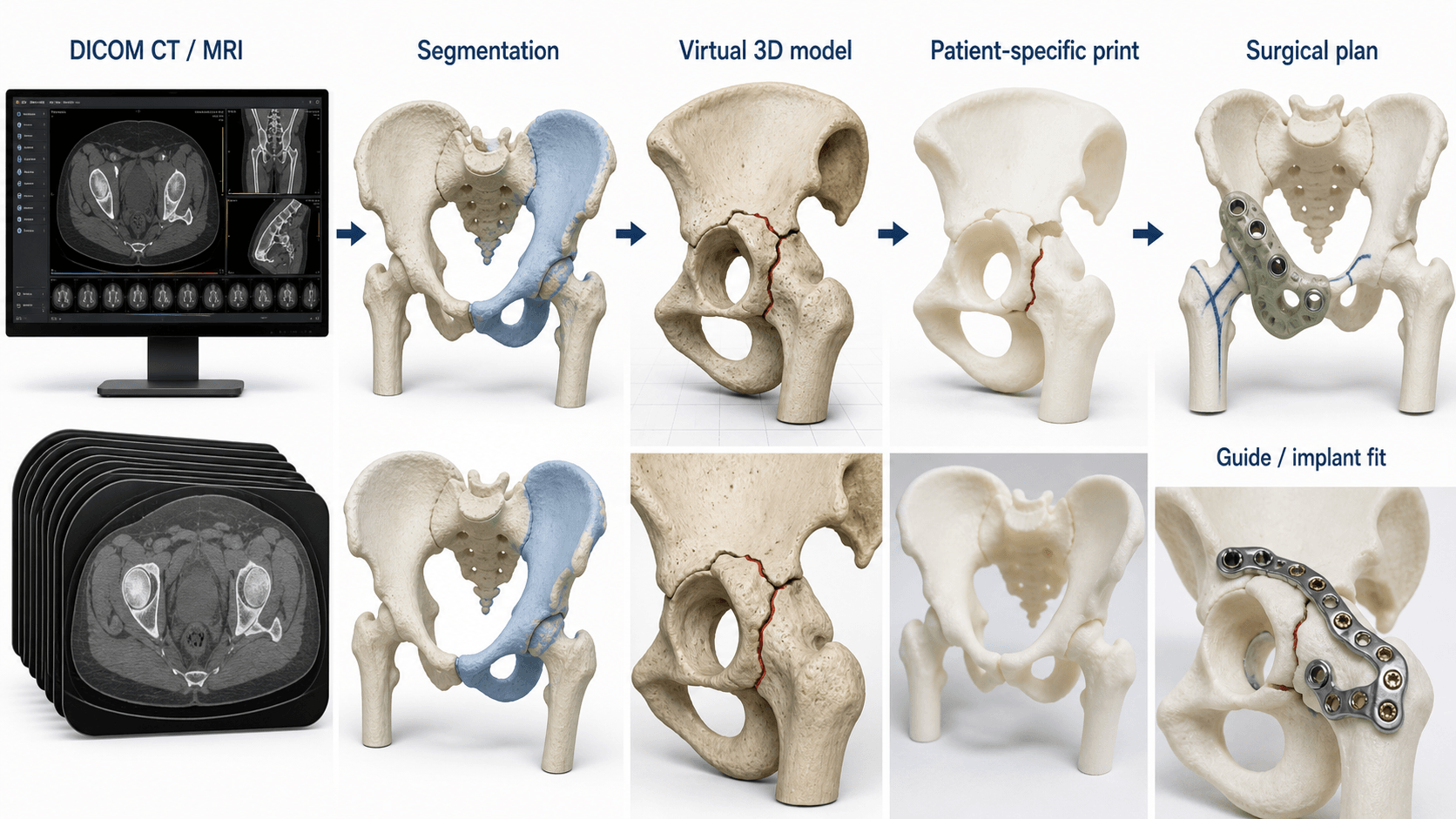

Workflow

  • •CT acquisition (less than 1mm slices)
  • •DICOM to segmentation software
  • •Generate STL file
  • •Print and post-process
  • •Sterilise if for OR use

Applications

  • •Anatomical models (planning, education)
  • •PSI (cutting guides, drill guides)
  • •Custom implants (tumour, revision)
  • •Pre-contoured plates

Imaging Requirements

  • •CT preferred for bone
  • •Slice thickness less than 1mm
  • •MARS protocol if metal present
  • •Include relevant anatomy margins

Limitations

  • •Time (days to weeks)
  • •Cost (equipment, materials)
  • •Regulatory for implants
  • •Requires expertise
Quick Stats
Reading Time55 min
Related Topics

CT Imaging Principles

AI in Orthopaedic Radiology

Weight-Bearing CT: Principles & Applications

Ankle & Foot Imaging: Systematic Interpretation
