GIANT CELL TUMOR OF TENDON SHEATH (GCTTS)
Benign Tendon Sheath Lesion | Most Common Hand Tumor | Same Disease as PVNS
GCTTS Classification
Critical Must-Knows
- GCTTS is the extra-articular form of TGCT - same pathology as PVNS, different location
- Second most common hand tumor after ganglion cyst (accounts for 10% of hand masses)
- CSF1-COL6A3 fusion drives pathogenesis - same molecular driver as PVNS
- Recurrence 10-20% due to incomplete excision or diffuse infiltrative type
- Treatment: Complete marginal excision with intact capsule - avoid fragmentation
Examiner's Pearls
- "GCTTS equals PVNS extra-articularly - same histology (hemosiderin, giant cells)
- "Classic location: Volar aspect of digits (index and middle finger most common)
- "MRI shows low signal on T1 and T2 (hemosiderin) - same as PVNS blooming
- "Key to prevent recurrence: Excise with intact capsule, inspect for satellite lesions
Clinical Imaging
Imaging Gallery
Critical GCTTS Exam Points
Relationship to PVNS
GCTTS equals TGCT extra-articularly. Intra-articular location equals PVNS. Extra-articular (tendon sheath) equals GCTTS. Same pathological process (CSF1-driven), different anatomical location.
Location Pattern
Volar digits (index, middle finger). Over 50% occur in hand, most on volar aspect of digits. Attaches to flexor tendon sheath. Rarely involves extensor side.
Surgical Principle
Excise with intact capsule. Fragmentation or incomplete excision increases recurrence from 10% to over 30%. Inspect for satellite lesions. Protect digital neurovascular bundles.
Recurrence Risk
10-20% recurrence overall. Diffuse type recurs more (30-40%) than localized. Recurrence peaks at 1-2 years. Re-excision is treatment for recurrence.
Quick Decision Guide - GCTTS Management
| Presentation | Type | Treatment | Key Pearl |
|---|---|---|---|
| Painless nodule, volar digit, slow-growing, no trauma | Localized GCTTS | Marginal excision with intact capsule | Recurrence 10-15% if complete excision |
| Infiltrative mass, wraps around structures, bone erosion | Diffuse GCTTS | Wide excision with margins | Higher recurrence (30-40%) - need wide margins |
| Recurrent mass after previous excision | Recurrent GCTTS | Re-excision + search for satellite lesions | Inspect prior surgical field for incomplete excision |
GIANTGCTTS Pathological Features
Memory Hook:GIANT cells + iron = the pathology of GCTTS, a GIANT among hand tumors!
HANDGCTTS Clinical Features
Memory Hook:GCTTS loves the HAND - remember the key clinical features!
RECURRecurrence Risk Factors
Memory Hook:Prevent RECURRENCE by complete excision with intact capsule!
Overview and Epidemiology
Why GCTTS Matters Clinically
Giant cell tumor of tendon sheath (GCTTS) is the second most common hand tumor after ganglion cyst, accounting for approximately 10% of all hand masses. It is the extra-articular manifestation of tenosynovial giant cell tumor (TGCT) - the same pathological process as PVNS, but arising from tendon sheath rather than joint synovium. Despite being benign, GCTTS causes functional impairment due to mass effect and can erode adjacent bone. Recurrence occurs in 10-20% of cases, primarily due to incomplete excision.
Demographics
- Age: Peak incidence 30-50 years (adults)
- Gender: Female predominance 2:1
- Location: Hand and wrist 75%, foot 20%, other 5%
- Laterality: No dominant hand preference
Clinical Impact
- Functional impairment: Mass effect limits finger motion
- Bone erosion: Pressure erosion of phalanx (20-30% of cases)
- Recurrence: 10-20% overall (higher for diffuse type)
- Neurovascular risk: Close proximity to digital neurovascular bundles
The classic patient is a middle-aged woman with a painless slow-growing nodule on the volar aspect of a digit.
Pathophysiology and Molecular Biology
GCTTS is Not a True Neoplasm - It's a Reactive Proliferation
Despite the name "tumor", GCTTS is a clonal proliferative disorder driven by CSF1-COL6A3 fusion (same as PVNS). Mononuclear stromal cells express CSF1, which recruits inflammatory cells (macrophages, giant cells) via CSF1R. The giant cells are reactive (not neoplastic) - the neoplastic component is the mononuclear stromal cells.
| Feature | Mechanism | Clinical Consequence |
|---|---|---|
| CSF1-COL6A3 fusion | Chromosomal translocation drives CSF1 overexpression | Clonal proliferation of stromal cells |
| CSF1R activation | Macrophages recruited by CSF1 via CSF1R binding | Inflammatory infiltrate creates mass |
| Hemosiderin deposition | Recurrent microhemorrhage into lesion | MRI low signal (blooming), gross dark color |
| Pressure erosion | Mass compresses adjacent bone | Cortical scalloping or erosion of phalanx |
Histopathology
- Multinucleated giant cells: Hallmark (but reactive)
- Mononuclear stromal cells: Neoplastic component (CSF1 expressing)
- Hemosiderin-laden macrophages: From microhemorrhage
- Xanthoma (foam) cells: Lipid-laden macrophages (yellow color)
- Capsule: Usually well-encapsulated (localized type)
Differential Histology
- vs PVNS: Same histology, different location (joint vs tendon sheath)
- vs Ganglion: No giant cells, mucinous cyst contents
- vs Fibroma: No giant cells or hemosiderin
- vs Giant cell tumor of bone: Different location, more aggressive
The key pathological distinction is localized (well-encapsulated) versus diffuse (infiltrative) types.
Classification and Clinical Forms
Localized GCTTS (90% of cases)
Clinical Features:
- Well-circumscribed lobulated nodule
- Arises from tendon sheath (usually flexor)
- Firm, rubbery, mobile mass
- Painless (unless compressing nerve)
- Slow growth over months to years
Imaging:
- MRI: Low signal T1 and T2, well-defined margins
- May show blooming on GRE sequences (hemosiderin)
- No soft tissue invasion
Treatment:
- Marginal excision with intact capsule
- Low recurrence (10-15%) if complete excision
Localized GCTTS has excellent prognosis with complete excision.
Localized vs Diffuse - Treatment and Prognosis Distinction
The critical exam point: Localized GCTTS (90% of cases) has well-defined margins and low recurrence (10-15%) with marginal excision. Diffuse GCTTS (10% of cases) has infiltrative growth, is difficult to excise completely, and recurs in 30-40% despite wide margins. This distinction guides surgical approach and patient counseling.
Clinical Presentation and Assessment
History
- Mass: Painless slow-growing nodule (months to years)
- Location: Volar digit (index and middle finger most common)
- Symptoms: Usually asymptomatic, mass effect only
- Pain: Rare unless nerve compression or joint involvement
- Trauma: No history of trauma (helps differentiate from other lesions)
Examination
- Inspection: Visible lobulated mass, skin intact
- Palpation: Firm, rubbery, well-defined, mobile on tendon sheath
- Range of motion: May be limited by mass effect
- Neurovascular: Usually intact (but mass may compress nerve)
- Transillumination: Negative (solid, not cystic like ganglion)
GCTTS vs Ganglion Cyst - Key Clinical Distinction
Key differentiating features: Ganglion cyst transilluminates (fluid-filled), is softer/fluctuant, and often arises from joint or tendon sheath near joint. GCTTS does NOT transilluminate (solid), is firm/rubbery, and can occur anywhere along tendon sheath. Both are common hand masses - clinical exam and MRI differentiate.
Location Distribution:
- Hand (75%): Index and middle fingers most common, volar aspect
- Wrist (5%): Flexor or extensor tendon sheaths
- Foot (20%): Toes and plantar aspect
- Other (under 5%): Ankle, knee (rare)
The classic presentation is painless volar digit mass that does not transilluminate.
Imaging and Diagnosis
Diagnostic Imaging Protocol
Initial assessment: Rule out bone lesion (giant cell tumor of bone), assess for pressure erosion.
Key findings:
- Usually normal (soft tissue mass)
- Cortical scalloping or erosion of adjacent phalanx (20-30%)
- No matrix calcification (unlike chondroma)
- Preserved joint space
Diagnostic MRI features: Low signal on T1 and T2 weighted sequences due to hemosiderin. Blooming artifact on GRE sequences (same as PVNS).
Sensitivity: Over 90% for GCTTS diagnosis when low signal present.
Key findings:
- Well-defined margins (localized) or infiltrative (diffuse)
- Low signal T1 and T2 (hemosiderin)
- Blooming on GRE sequences
- Relationship to neurovascular structures (surgical planning)
Appearance: Solid hypoechoic mass attached to tendon sheath
Role: Differentiate from ganglion (cystic), assess vascularity
Limitation: Cannot assess bone erosion or deep extent
Indications: Atypical imaging, need to exclude malignancy
Approach: Excisional biopsy (preferred for small lesions) or incisional biopsy for large masses
Histology confirms: Giant cells, hemosiderin, mononuclear stromal cells
MRI Low Signal - Characteristic Finding
Q: What is the characteristic MRI appearance of GCTTS? A: Low signal on both T1 and T2 weighted sequences - caused by hemosiderin (iron) deposition. Blooming artifact on gradient echo (GRE) sequences is also characteristic (same as PVNS). This low signal helps differentiate GCTTS from other hand masses like ganglion (high signal T2) or fibroma (intermediate signal).
Differential Diagnosis
GCTTS Differential Diagnosis
| Condition | Key Distinguishing Features | Imaging Differences |
|---|---|---|
| Ganglion cyst | Most common hand mass, cystic, transilluminates, fluctuant | High signal T2, fluid on US, near joint |
| Fibroma of tendon sheath | Firm solid mass, no hemosiderin, benign | Intermediate signal T1/T2, no blooming |
| Glomus tumor | Subungual location, exquisitely tender, pulsatile pain | High signal T2, intense enhancement, nail bed |
| Epithelioid sarcoma | MALIGNANT, painless mass, ulceration, young adults | Heterogeneous signal, invasion, lymph nodes |
| Giant cell tumor of bone | Bone origin (not soft tissue), aggressive lytic lesion | Lytic bone lesion, cortical breakthrough |
The critical distinction is benign (GCTTS, ganglion, fibroma) versus malignant (epithelioid sarcoma) - biopsy if any concern for malignancy.

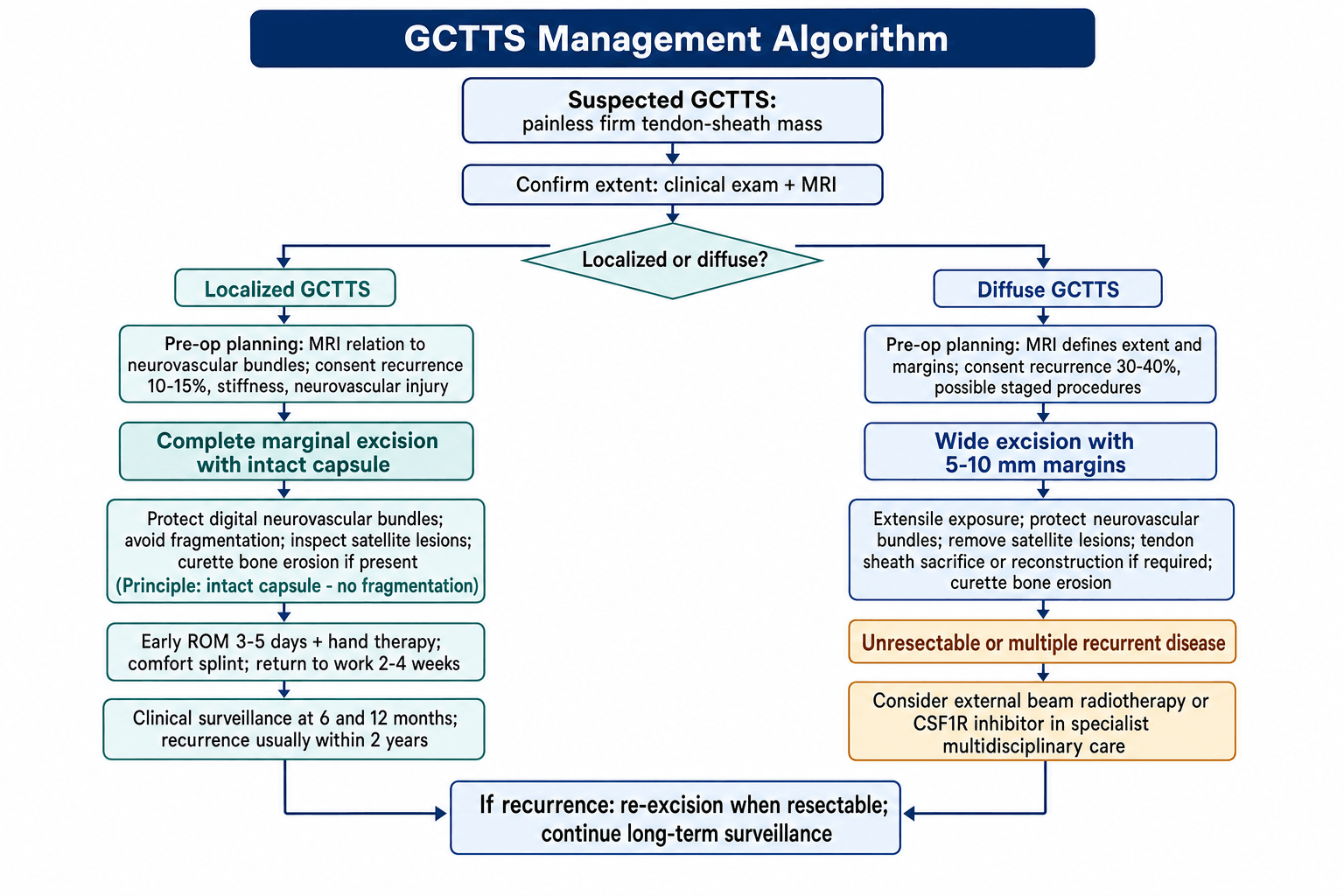

Management Algorithm
Localized GCTTS Management
Goal: Complete marginal excision with intact capsule to minimize recurrence.
Treatment Steps
Imaging review: MRI to assess extent, relationship to neurovascular structures
Consent: Recurrence risk (10-15%), neurovascular injury risk, stiffness
Anesthesia: Local with sedation or regional block (Bier block, axillary block)
Approach: Volar or dorsal incision based on mass location
Technique:
- Identify and protect digital neurovascular bundles (Bruner incision for volar)
- Dissect capsule from surrounding structures
- Excise with intact capsule (avoid fragmentation)
- Inspect for satellite lesions
- Check for bone erosion (curettage if present)
Closure: Skin only (no drain needed), splint for comfort
- Early range of motion (3-5 days) to prevent stiffness
- Hand therapy for rehabilitation
- Splint for comfort (not mandatory)
- Return to work at 2-4 weeks
Protocol: Clinical exam at 6 and 12 months
Recurrence: Usually within 2 years if occurs
Re-excision: Treatment for recurrence
Localized GCTTS has excellent prognosis with complete excision.
Complete Excision with Intact Capsule - Key to Prevent Recurrence
The single most important technical factor to prevent recurrence is excision with intact capsule without tumor fragmentation. Rupture of the capsule or piecemeal excision seeds the surgical field with tumor cells and increases recurrence from 10-15% to over 30%. Inspect for satellite lesions (small nodules near main mass) which also contribute to recurrence.
Surgical Technique - Volar Digit Excision
Patient Positioning and Setup
Setup Checklist
Supine with arm on hand table.
- Tourniquet on upper arm
- Hand supinated on sterile hand table
- Magnification (loupes or microscope) for neurovascular protection
- Local with sedation (small lesions)
- Regional block (Bier block, axillary) for larger lesions
- General anesthesia rarely needed
- Tourniquet (exsanguinate with Esmarch)
- Loupes or microscope
- Fine instruments for neurovascular dissection
Standard hand surgery positioning.
Complications of GCTTS and Treatment
| Complication | Incidence/Risk Factors | Prevention/Management |
|---|---|---|
| Recurrence (most common) | 10-20% overall (higher for diffuse type, incomplete excision) | Complete excision with intact capsule, remove satellites |
| Digital nerve injury | Nerve adherent to tumor capsule, iatrogenic during dissection | Magnification, meticulous technique, identify nerves early |
| Digital artery injury | Vessel adherent to capsule, risk during excision | Identify vessels, protect with vessel loops, bipolar cautery |
| Stiffness | Prolonged immobilization, adhesions | Early range of motion (3-5 days), hand therapy |
| Wound infection | Low risk (under 2%), contamination | Sterile technique, perioperative antibiotics if indicated |
Neurovascular Injury - Key Surgical Risk
Digital neurovascular bundles are immediately adjacent to GCTTS on volar digits. The tumor capsule may be adherent to nerve or artery. Use magnification (loupes or microscope), identify neurovascular structures early, and dissect meticulously. Nerve injury causes permanent numbness. Artery injury requires repair or risks digit ischemia.
The major complication is recurrence, driven by incomplete excision or diffuse type.
Postoperative Care and Rehabilitation
Postoperative Rehabilitation Protocol
- Bulky dressing and volar splint
- Elevation to reduce swelling
- Pain control (oral analgesics)
- Remove splint at day 3-5
- Early active ROM to prevent stiffness
- Continue elevation between exercises
- Light activities of daily living (no lifting)
- Remove sutures at 10-14 days
- Progressive strengthening exercises
- Hand therapy for scar massage, edema control
- Return to unrestricted activities at 4-6 weeks
- Clinical exam at 6 and 12 months
- MRI if recurrence suspected (palpable mass)
- Most recurrences occur within 2 years
Early range of motion is critical to prevent finger stiffness after hand surgery.
Recurrence and Outcomes
| Factor | Recurrence Risk | Management Strategy |
|---|---|---|
| Localized type, complete excision | 10-15% | Standard marginal excision, clinical surveillance |
| Incomplete excision or capsule rupture | over 30% | Re-excision if recurrence detected early |
| Diffuse type | 30-40% | Wide excision, consider adjuvant if unresectable recurrence |
Management of Recurrent GCTTS
First recurrence: Re-excision with wider margins, search for satellite lesions that were missed during initial surgery. Multiple recurrences: Consider adjuvant radiation (20 Gy) for unresectable disease, or CSF1R inhibitor (pexidartinib off-label) for extensive recurrent disease. Most recurrences occur within 2 years - long surveillance important.
Overall outcomes are excellent with low complication rates and high function restoration if excision is complete.
Evidence Base and Key Studies
GCTTS Recurrence Factors: Systematic Review
- Systematic review of 524 GCTTS cases
- Overall recurrence rate: 16% (range 4-44%)
- Diffuse type: 40% recurrence vs localized 10%
- Incomplete excision increased recurrence 3-fold
- Satellite lesions present in 25% of cases
CSF1 Overexpression in GCTTS
- CSF1-COL6A3 fusion identified in GCTTS specimens
- Same molecular driver as PVNS (same disease, different location)
- CSF1 recruits macrophages and giant cells via CSF1R
- Established molecular basis for GCTTS as TGCT variant
MRI Features of GCTTS
- Review of 45 GCTTS cases with MRI
- Low signal T1 and T2 in 93% (hemosiderin)
- Blooming artifact on GRE in 87%
- Bone erosion identified on MRI in 35% (XR missed 15%)
- MRI accuracy for extent: 90%
Surgical Outcomes After GCTTS Excision
- Case series of 42 GCTTS excisions
- Recurrence rate: 14% at mean 3-year follow-up
- Satellite lesions found in 21% of cases
- No difference in recurrence between volar vs dorsal location
- Function restoration: 95% returned to baseline
Pexidartinib for TGCT (Includes Extra-Articular)
- Phase 3 trial: 120 patients with TGCT (intra and extra-articular)
- Overall response: 39% vs 0% placebo
- Tumor shrinkage in 56% of patients
- FDA approval for TGCT (includes GCTTS)
- Hepatotoxicity: Black box warning
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination
Scenario 1: Painless Volar Digit Mass
"A 42-year-old woman presents with a 2-year history of a painless mass on the volar aspect of her index finger. On examination, you feel a firm, well-defined, non-tender nodule attached to the flexor tendon sheath. The mass does not transilluminate. MRI shows a lobulated mass with low signal on T1 and T2. What is your diagnosis and management?"
Scenario 2: Surgical Technique for GCTTS Excision
"You have decided to proceed with excision of a localized GCTTS on the volar aspect of the index finger. Walk me through your surgical approach and key technical points."
Scenario 3: Recurrent GCTTS Management
"A 38-year-old woman had excision of GCTTS from her middle finger 18 months ago. She now presents with a recurrent mass at the same site. MRI shows an infiltrative mass wrapping around the flexor tendon and adherent to digital nerve. How do you manage this?"
MCQ Practice Points
Epidemiology Question
Q: What is the most common location for GCTTS? A: Volar aspect of the digits (hand and wrist 75% of cases), specifically index and middle fingers most common. Foot accounts for 20% of cases. GCTTS is the second most common hand tumor after ganglion cyst (10% of hand masses).
Pathogenesis Question
Q: What is the relationship between GCTTS and PVNS? A: GCTTS equals PVNS (same disease, different location). Both are tenosynovial giant cell tumor (TGCT) driven by CSF1-COL6A3 fusion. PVNS is intra-articular (joint synovium), GCTTS is extra-articular (tendon sheath). Same histology (hemosiderin, giant cells) and molecular pathogenesis (CSF1 overexpression).
Imaging Question
Q: What is the characteristic MRI appearance of GCTTS? A: Low signal on both T1 and T2 weighted sequences due to hemosiderin (iron) deposition. Blooming artifact on gradient echo (GRE) sequences is also characteristic (same as PVNS). This distinguishes GCTTS from ganglion (high T2 signal) and other soft tissue masses.
Treatment Question
Q: What is the key surgical principle to minimize GCTTS recurrence? A: Complete marginal excision with intact capsule - avoid tumor fragmentation or spillage. Fragmentation increases recurrence from 10-15% to over 30%. Also critical to search for and remove satellite lesions (small nodules near main tumor) which contribute to recurrence.
Recurrence Question
Q: What is the recurrence rate for localized vs diffuse GCTTS? A: Localized GCTTS: 10-15% recurrence with complete excision (well-encapsulated, easier to excise completely). Diffuse GCTTS: 30-40% recurrence despite wide excision (infiltrative growth, difficult to achieve negative margins). Time to recurrence: median 1-2 years.
Australian Context and Medicolegal Considerations
Hand Surgery Services
- Public hospitals: Hand surgery units in major tertiary centers
- Private practice: Hand surgeons manage most GCTTS
- Public System Coverage: Excision of hand tumors including GCTTS
- Referral pathway: GP to hand surgeon or orthopaedics
Histopathology Services
- Pathology confirmation: All excised masses sent for histology
- Differential: Must rule out malignancy (epithelioid sarcoma)
- Reporting: Giant cells, hemosiderin, mononuclear cells confirm GCTTS
- Margin assessment: Not routine (marginal excision is standard)
Medicolegal Considerations and Consent
Key documentation requirements for GCTTS surgery:
- Recurrence risk: 10-20% overall, higher for diffuse type
- Neurovascular injury: Digital nerve or artery injury risk (permanent numbness or ischemia)
- Stiffness: Finger stiffness risk if prolonged immobilization
- Incomplete excision: Risk of recurrence if margins not clear
- Functional impact: Time off work (2-4 weeks), hand therapy
Common litigation scenarios:
- Failure to diagnose (delayed referral, missed on imaging)
- Neurovascular injury during excision (nerve or vessel not identified)
- Recurrence due to incomplete excision (capsule ruptured, satellites missed)
- Inadequate surveillance (recurrence not detected early)
Hand Therapy Resources
- Hand therapy: Essential for post-op rehabilitation
- Early mobilization: Prevents stiffness (key outcome determinant)
- Scar management: Massage, silicone gel for incision
- Strengthening: Progressive exercises at 2-6 weeks
Patient Education
- Benign nature: Reassure not cancer (important for anxiety)
- Recurrence monitoring: Self-check for masses, report early
- Return to work: Typically 2-4 weeks (depends on occupation)
- Function: Over 90% return to baseline hand function
GCTTS is a common hand tumor managed routinely by hand surgeons in Australia with excellent outcomes.
GIANT CELL TUMOR OF TENDON SHEATH (GCTTS)
High-Yield Exam Summary
Key Pathology
- •GCTTS equals TGCT extra-articularly (same as PVNS, different location)
- •CSF1-COL6A3 fusion drives CSF1 overexpression and macrophage recruitment
- •Histology: Multinucleated giant cells, hemosiderin-laden macrophages, mononuclear stromal cells, xanthoma cells
- •Gross: Tan-yellow lobulated mass attached to tendon sheath
Epidemiology
- •Second most common hand tumor (after ganglion) - 10% of hand masses
- •Peak age 30-50 years, female 2:1
- •Location: Hand/wrist 75% (volar digits - index/middle finger), foot 20%
- •Localized type 90%, diffuse type 10%
Imaging
- •MRI low signal T1 and T2 = hemosiderin (same as PVNS)
- •Blooming artifact on GRE sequences
- •Well-defined margins (localized) or infiltrative (diffuse)
- •XR: Bone erosion in 20-30% (pressure erosion, not invasion)
Treatment
- •Localized: Marginal excision with intact capsule (10-15% recurrence)
- •Diffuse: Wide excision with margins (30-40% recurrence)
- •Key principle: Intact capsule (fragmentation increases recurrence 3-fold)
- •Remove satellite lesions, early ROM to prevent stiffness
Surgical Pearls
- •Bruner incision for volar access, protect digital neurovascular bundles
- •Magnification (loupes/microscope) critical for nerve/vessel protection
- •Excise en bloc with intact capsule - avoid tumor spillage
- •Search for satellites, curettage bone erosions if present
