Intervertebral Disc Biology

Gross Anatomy

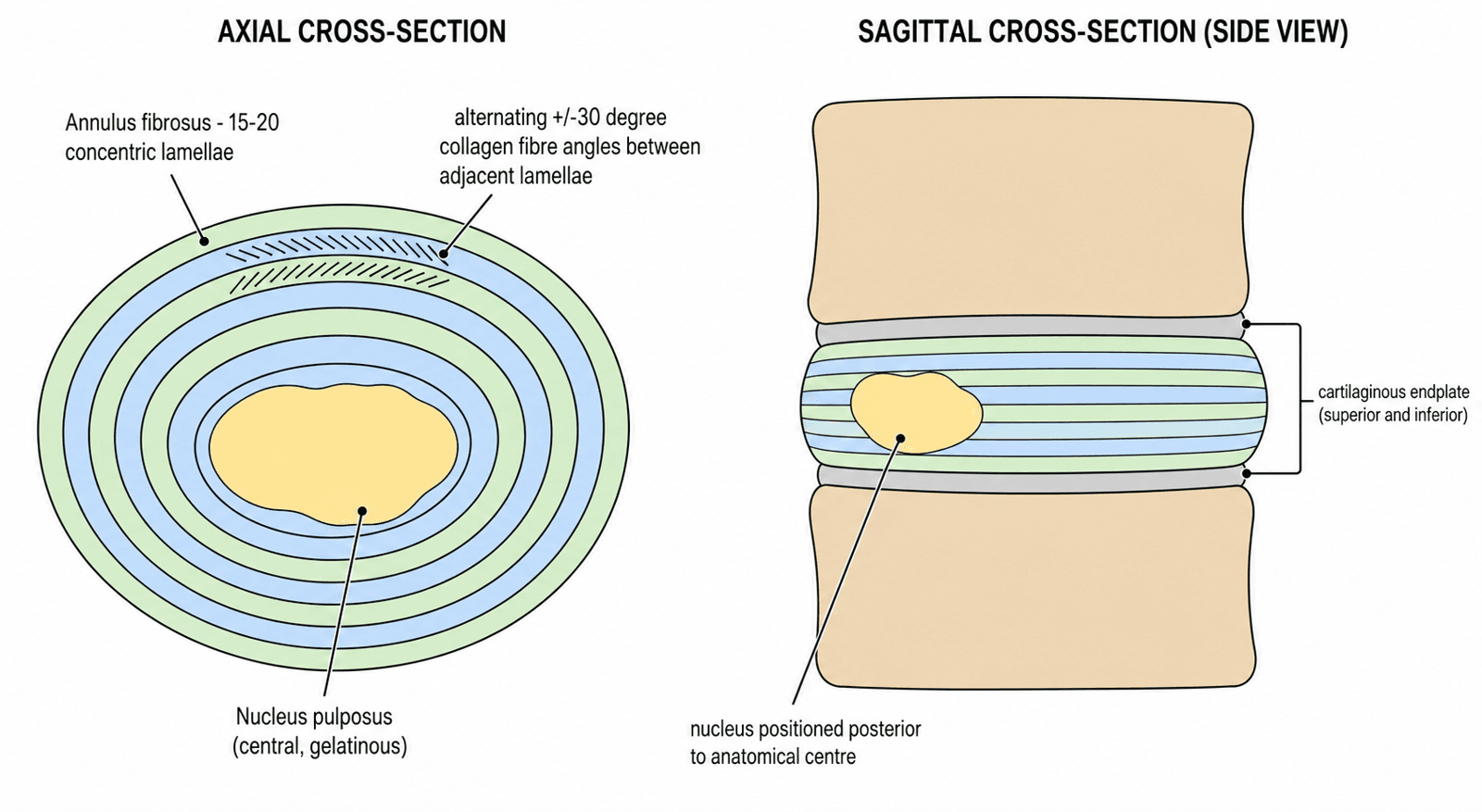

The intervertebral disc comprises three distinct components:

1. Nucleus Pulposus (Central):

• Gelatinous, hydrated core
• 80% water at birth, decreasing to 70% by age 60
• Type II collagen (random orientation) and aggrecan
• Resists compressive loads through hydrostatic pressure
• Located slightly posterior to anatomical center (important for herniation pathomechanics)

2. Annulus Fibrosus (Peripheral):

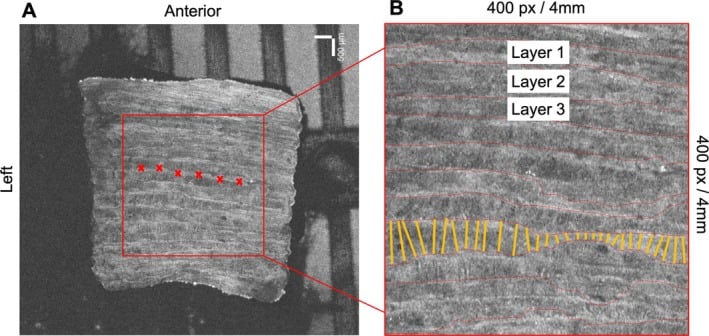

• 15-20 concentric lamellae of Type I collagen
• Fibers oriented at ±30° from horizontal in alternating layers

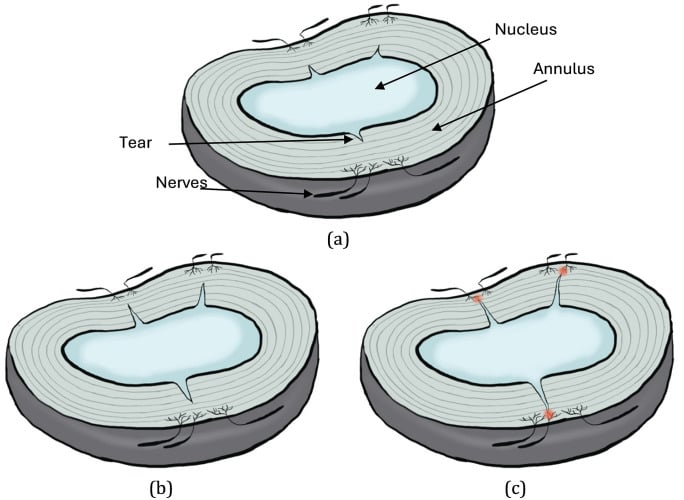

• Outer annulus contains pain fibers (recurrent meningeal nerve of Luschka)
• Inner annulus blends with nucleus (no clear boundary)
• Anterior annulus thicker than posterior (posterior more prone to tear)

3. Cartilaginous Endplates (Superior/Inferior):

• Thin layer of hyaline cartilage (0.6-1.0 mm thick)
• Covers vertebral body endplate
• Primary route for disc nutrition (diffusion pathway)
• Weakest structural component (vulnerable to trauma)

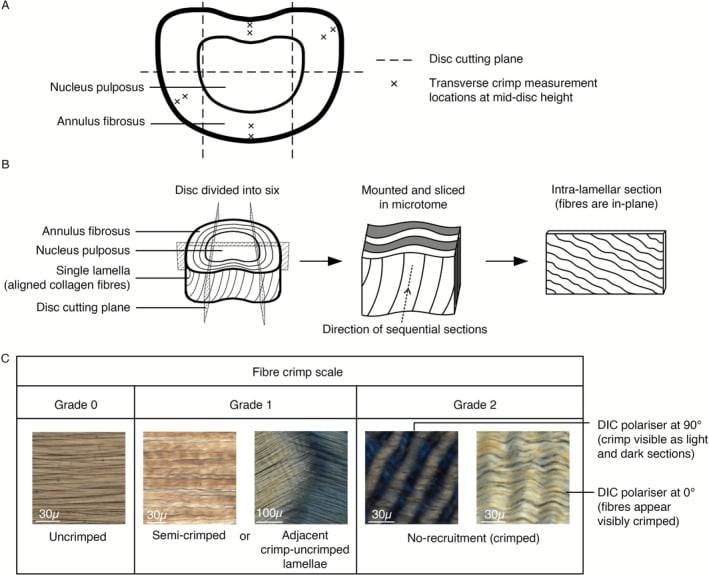

Microstructure and Composition

The crossed-fiber arrangement of the annulus (alternating ±30° layers) creates a structure that:

• Resists tensile loads in any direction
• Resists torsional (rotational) loads
• Confines the nucleus centrally under compression
• Prevents nuclear herniation (when intact)

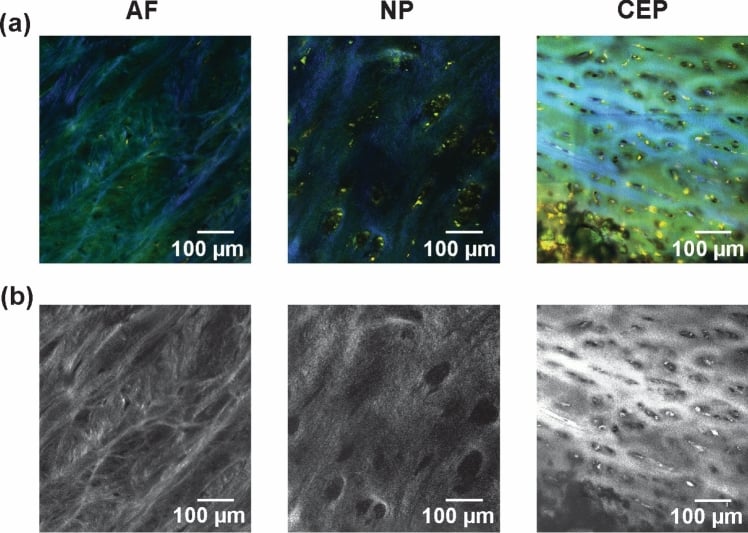

Core Biochemical Concepts

Extracellular Matrix Composition:

The disc matrix determines function and undergoes significant changes with age and degeneration:

• Nucleus pulposus: Aggrecan proteoglycan (water retention), Type II collagen (scaffold)
• Annulus fibrosus: Type I collagen (tensile strength), elastin (elasticity)
• Endplate: Hyaline cartilage, collagen, proteoglycans (nutrient passage)

Cellular Biology:

• Notochordal cells (embryonic) → replaced by chondrocyte-like cells by adulthood
• Cell density very low (sparse population)
• Cells rely entirely on diffusion for oxygen and glucose (8mm diffusion distance)
• Hypoxic environment with anaerobic metabolism

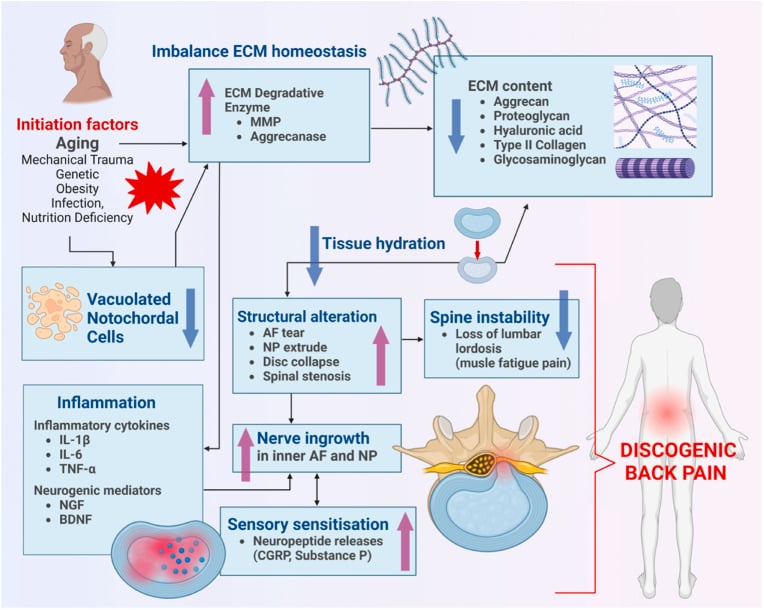

Molecular Degeneration Pathway:

1. Matrix metalloproteinases (MMPs) and ADAMTS degrade proteoglycans
2. Aggrecan loss → decreased water retention (80% → under 60%)
3. Type II collagen replaced by Type I collagen
4. Disc height decreases → altered load distribution
5. Pro-inflammatory cytokines (IL-1beta, TNF-alpha) perpetuate cycle

Load Distribution

The disc functions as a load-bearing hydraulic system:

Under Compression:

1. Nucleus pulposus subjected to hydrostatic pressure
2. Nucleus attempts to expand radially
3. Annulus fibrosus resists radial expansion (hoop stress in fibers)
4. Load distributed evenly across vertebral endplate

Under Flexion/Extension:

• Anterior annulus compressed, posterior annulus tensioned (flexion)
• Posterior annulus compressed, anterior annulus tensioned (extension)
• Nucleus shifts posteriorly (flexion) or anteriorly (extension)

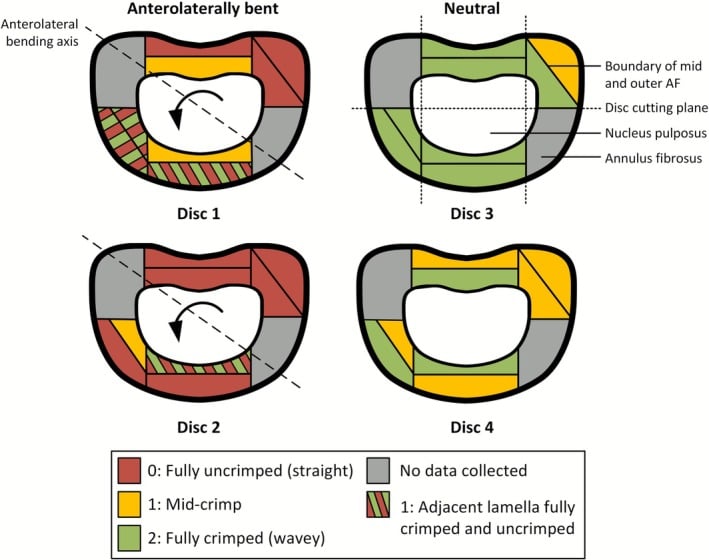

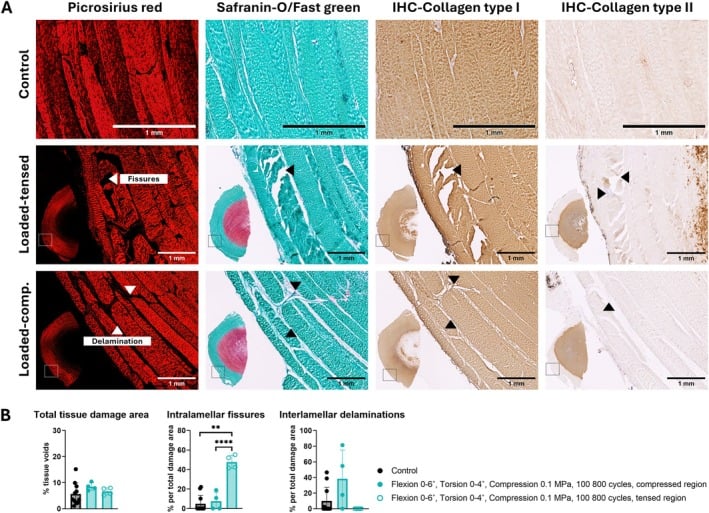

Under Lateral Bending and Rotation:

• Asymmetric loading of annular lamellae
• Crossed-fiber orientation resists torsion
• Rotation is the most damaging motion (shear forces on annulus)

Viscoelastic Properties

The disc demonstrates time-dependent behavior:

• Creep: Under constant load, disc height decreases over time (fluid exudation)
• Stress relaxation: Under constant deformation, internal stress decreases over time

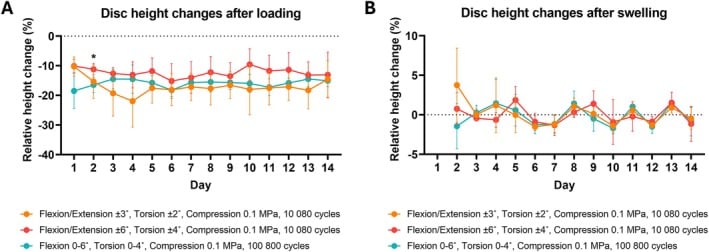

• Diurnal variation: Disc height decreases 20mm during day (fluid loss), recovers overnight
• Age-related changes: Decreased water content → decreased viscoelasticity

This viscoelastic behavior explains why back pain is often worse in the morning (disc fully hydrated, maximum intradiscal pressure) and why prolonged standing/sitting causes symptoms (creep deformation).

Avascular Nature

The adult intervertebral disc is the largest avascular structure in the human body:

• Vascularized in childhood: Blood vessels penetrate endplates
• Avascular by age 20: Vessels regress, diffusion becomes only nutrition route
• Longest diffusion pathway: Up to 8mm from endplate to central nucleus
• Metabolic challenge: Cells in center of disc furthest from blood supply in body

Nutrient Transport

Factors Affecting Disc Nutrition:

• Endplate permeability: Sclerosis or calcification → decreased diffusion → cell death
• Disc height: Thicker discs → longer diffusion pathway → poorer nutrition
• Loading: Cyclic loading enhances diffusion (pumping action), static loading impairs it
• Smoking: Decreases endplate blood supply → accelerates degeneration

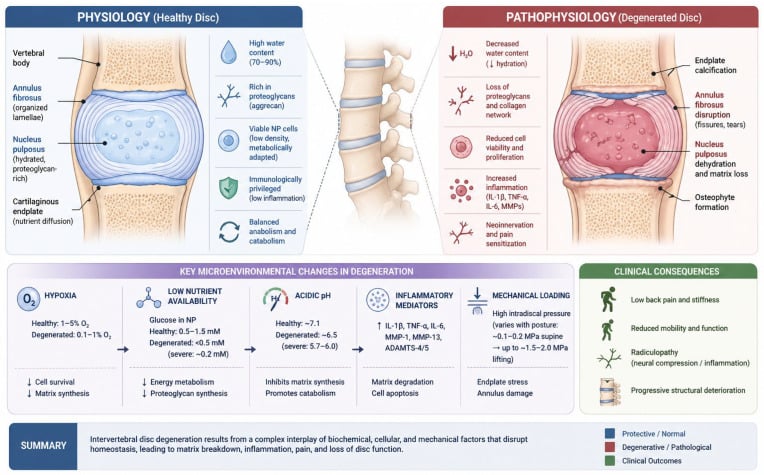

Degeneration Cascade

Disc degeneration follows a predictable biochemical → structural → biomechanical pathway:

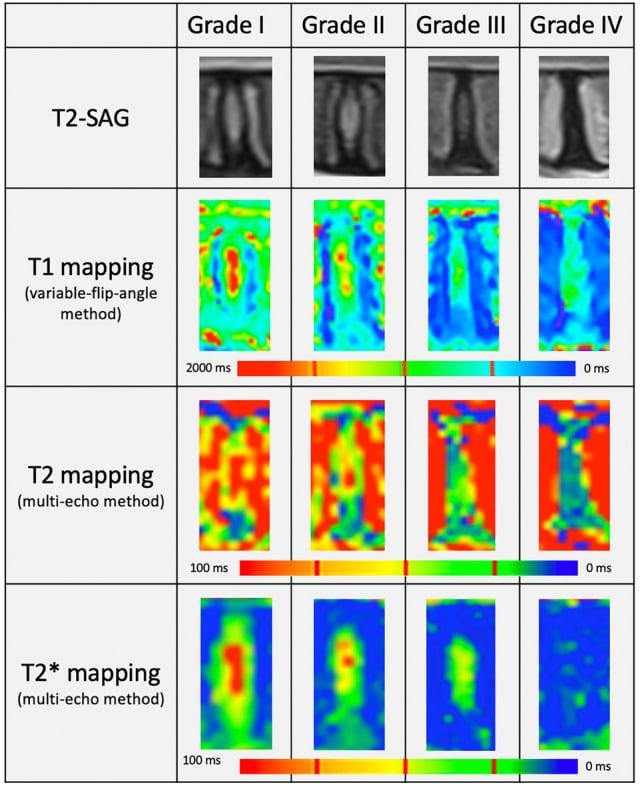

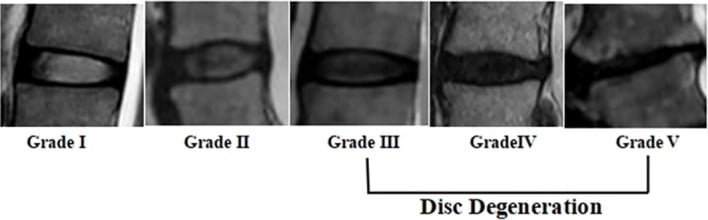

Pfirrmann Classification (MRI Grading)

Click to expand

Click to expand

Modic Endplate Changes

Modic changes represent endplate and adjacent bone marrow pathology associated with disc degeneration:

• Type I (T1 low, T2 high): Edema and inflammation → acute/active degeneration
• Type II (T1 high, T2 high): Fatty replacement → chronic degeneration
• Type III (T1 low, T2 low): Sclerosis → end-stage degeneration

Modic Type I changes are associated with discogenic back pain and may represent an inflammatory phenotype amenable to treatment.

Understanding Disc Biology Informs Clinical Practice

Why Discs Don't Heal:

• Avascular after age 20 → no inflammatory healing response
• Low cell density → insufficient regenerative capacity
• Hostile biochemical environment with catabolic cytokines
• This explains why conservative treatment focuses on symptom management

Surgical Implications:

• Discectomy removes herniating nucleus but accelerates degeneration
• Fusion eliminates motion segment but increases adjacent level stress
• Disc replacement aims to preserve motion but long-term outcomes variable
• Biologic therapies (stem cells, growth factors) target regeneration

Prevention and Modification:

• Smoking cessation (nicotine impairs already limited nutrition)
• Weight management (reduces compressive load)
• Avoid repetitive flexion-rotation (most damaging motion)
• Core strengthening (dynamic stabilization)
