TENDON HEALING
Three Phases | Intrinsic vs Extrinsic | Type III to Type I Transition | Growth Factor Regulation
Three Phases of Tendon Healing
Critical Must-Knows
- Three overlapping phases: inflammatory (0-7 days), proliferative (7 days-6 weeks), remodeling (6 weeks-12+ months)
- Intrinsic healing via tenocytes (preferred) vs extrinsic healing via peritendinous fibroblasts (adhesions)
- Collagen type III appears first (disorganized scar), gradually replaced by type I (aligned, strong)
- Growth factors regulate healing: TGF-β (scar formation), VEGF (angiogenesis), IGF-1 and PDGF (proliferation)
- Early controlled motion superior to immobilization - reduces adhesions, promotes intrinsic healing, improves fiber alignment
Examiner's Pearls
- "Zone-specific healing in hand flexor tendons: Zone 2 worst prognosis (poor vascularity, synovial sheath)
- "Adhesion formation main complication - balance between healing and motion
- "Gap healing (under 3mm) better outcomes than proliferative healing (larger gaps)
- "Repair quality more important than timing (primary vs delayed) for outcomes
Clinical Imaging
Imaging Gallery
Critical Tendon Healing Exam Points
Three Overlapping Phases
Inflammatory (0-7 days): Hematoma, inflammatory cells, weak fibrin clot. Proliferative (7 days-6 weeks): Tenocyte proliferation, collagen III synthesis, neovascularization. Remodeling (6 weeks-12+ months): Collagen I replaces III, fiber realignment, strength increase.
Intrinsic vs Extrinsic
Intrinsic: Tenocytes and epitenon cells proliferate, synthesize matrix. Results in functional tendon with less adhesions. Extrinsic: Peritendinous fibroblasts invade, form scar tissue. Results in adhesions but provides early mechanical strength.
Collagen Transition
Type III collagen (thin, disorganized) appears first at 1-2 weeks, peaks at 2-3 weeks. Gradually replaced by Type I collagen (thick, organized) from 6 weeks onward. Type I alignment along stress lines improves tensile strength. Never reaches 100% of normal.
Growth Factor Regulation
TGF-β: Promotes fibroblast proliferation and collagen synthesis (can cause excessive scarring). VEGF: Angiogenesis (essential early, problematic late). IGF-1 and PDGF: Stimulate tenocyte proliferation. FGF: Matrix synthesis and remodeling.
IPRThree Phases of Tendon Healing
Memory Hook:IPR - I'm Promoting Recovery through three phases!
TV PIG-FGrowth Factors in Tendon Healing
Memory Hook:Watch TV with a PIG for healing - growth factors drive tendon repair!
VZMQBLFactors Affecting Tendon Healing
Memory Hook:VZMQBL - Very Zealous Motion Quite Beneficial for Living tendons!
Overview and Healing Phases
Tendon healing is a complex biological process involving sequential and overlapping phases of inflammation, proliferation, and remodeling. Unlike bone, which heals through regeneration of native tissue, tendon healing occurs through scar tissue formation that never fully restores the original structure and biomechanical properties of healthy tendon.
The healing process involves a delicate balance between intrinsic healing (via tenocytes within the tendon) and extrinsic healing (via peritendinous fibroblasts). Intrinsic healing produces functional tendon with minimal adhesions, while extrinsic healing provides early mechanical strength but at the cost of adhesion formation.
Why Tendon Healing Matters Clinically
Understanding tendon healing biology explains: why early controlled motion protocols are superior to immobilization; why Zone 2 flexor tendon injuries have poor prognosis; why adhesions form despite modern surgical techniques; why repair strength at 6 weeks allows protected motion but re-rupture risk remains; why biological augmentation strategies (PRP, growth factors) are being investigated.
Concepts and Mechanisms
Fundamental Tendon Healing Biology
Tendon healing represents a fundamental biological process that differs significantly from bone healing. While bone heals through regeneration, restoring native tissue architecture, tendon healing occurs through scar tissue formation that never fully replicates the original structure or mechanical properties.
Key Differences from Bone Healing:
- Bone regenerates native tissue; tendon forms scar
- Bone healing restores 100% strength; tendon plateaus at 60-80%
- Bone healing reconstitutes normal architecture; tendon remains disorganized
- Bone healing follows predictable timeline; tendon healing highly variable
Critical Healing Balance:
- Too little inflammation: Delayed healing, poor strength
- Too much inflammation: Excessive scarring, adhesions
- Too little motion: Adhesions, weak disorganized healing
- Too much motion: Gap formation, rupture

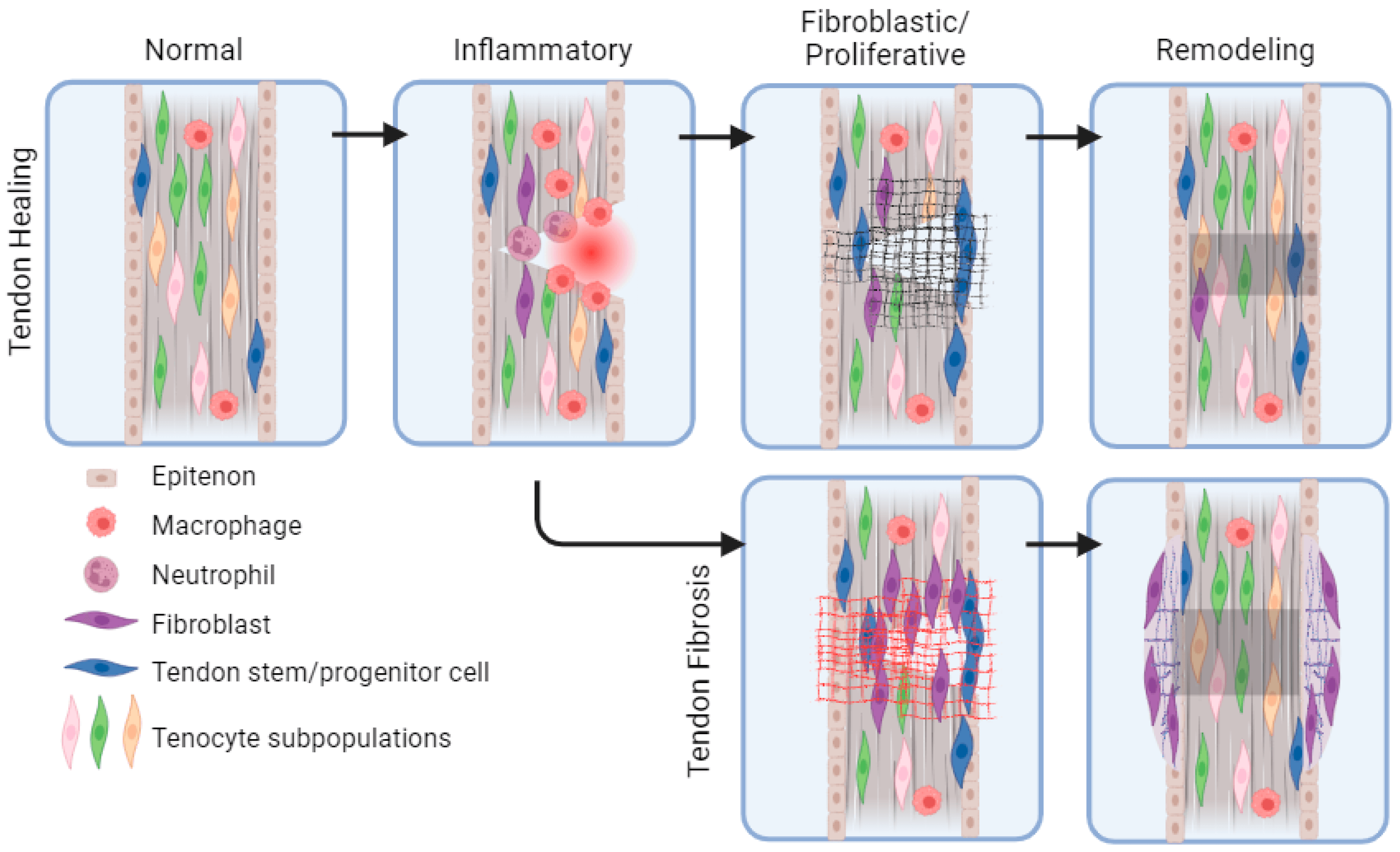

Phases of Tendon Healing
Inflammatory Phase (0-7 Days)
Inflammatory Phase Events
Hematoma formation at injury site. Platelets aggregate and release growth factors (PDGF, TGF-β, VEGF) from alpha granules. Fibrin clot provides initial weak scaffold. Vasoactive mediators cause vasodilation and increased vascular permeability.
Neutrophils infiltrate (peak at 24 hours) for phagocytosis of debris and bacteria. Monocytes arrive and differentiate into macrophages (M1 phenotype initially). Inflammatory cells release cytokines (IL-1, IL-6, TNF-α).
Macrophage phenotype shift from M1 (pro-inflammatory) to M2 (pro-healing). M2 macrophages release growth factors promoting angiogenesis and fibroblast recruitment. Neovascularization begins with VEGF stimulation of endothelial cells.
Key Cellular Players:
- Platelets: Release growth factors from alpha granules
- Neutrophils: Phagocytosis, debris removal (peak 24h, gone by 3-5 days)
- Macrophages: M1 to M2 transition, orchestrate healing response
- Endothelial cells: Begin angiogenesis in response to VEGF
Biomechanical Properties:
- Tensile strength: 0-10% of normal
- Fibrin clot provides weak mechanical continuity
- High risk of gapping or re-rupture with loading
- Requires immobilization or protected mobilization
Clinical Implication
First week after repair: Tendon has minimal strength - relies on suture integrity. Avoid active loading. Early passive motion can begin if repair is strong enough (minimum 4-strand core suture).
Understanding the inflammatory phase explains why NSAIDs should be used cautiously (may impair healing), why diabetes impairs healing (altered macrophage function), and why early infection is devastating (overwhelms nascent healing response).
Intrinsic vs Extrinsic Healing
Two Mechanisms of Tendon Healing

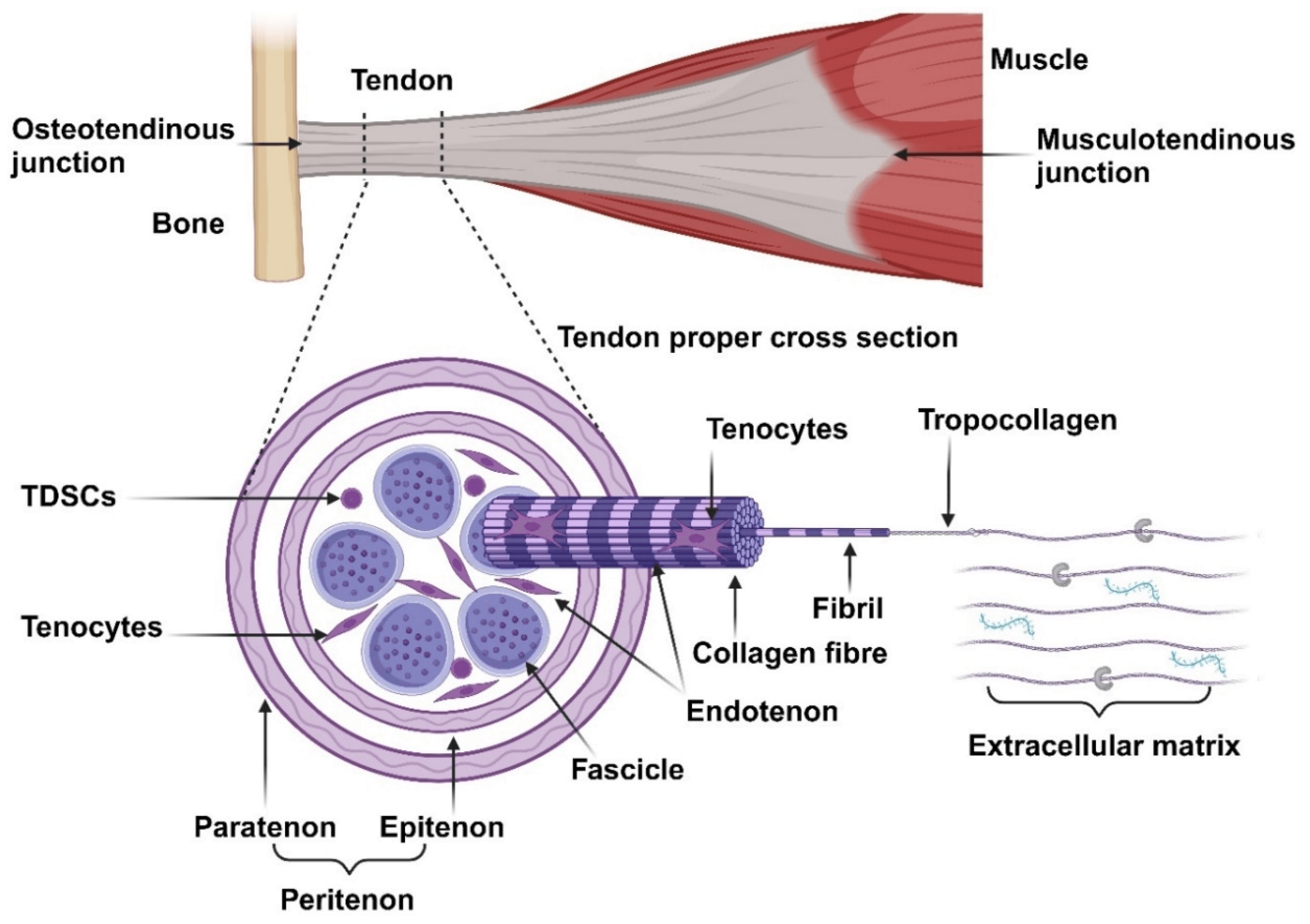

Tendon healing involves contributions from both intrinsic (within-tendon) and extrinsic (peritendinous) mechanisms. The balance between these two determines functional outcome.
Intrinsic Healing:
- Cell source: Tenocytes within tendon substance and epitenon surface cells
- Mechanism: Tenocytes proliferate and synthesize matrix directly at injury site
- Advantages: Produces organized collagen aligned with tendon axis, minimal adhesions, preserves gliding function
- Disadvantages: Slower initial healing, requires intact vascular supply, vulnerable to complete rupture
- Clinical goal: Promote with early controlled motion and strong surgical repair
Extrinsic Healing:
- Cell source: Fibroblasts from peritendinous tissue (paratenon, synovial sheath, surrounding fascia)
- Mechanism: Inflammatory response recruits fibroblasts that invade healing site and deposit scar matrix
- Advantages: Rapid mechanical strength, occurs even with complete tendon disruption
- Disadvantages: Disorganized collagen, adhesions bind tendon to surrounding structures, loss of gliding function
- Clinical problem: Adhesions are the main complication of flexor tendon repair
| Outcome Measure | Intrinsic-Dominant Healing | Extrinsic-Dominant Healing |
|---|---|---|
| Adhesion Formation | Minimal - smooth gliding maintained | Severe - tendon bound to sheath or surrounding tissue |
| Collagen Organization | Aligned along tendon axis | Disorganized, multidirectional |
| Tensile Strength (final) | Higher (70-80% of normal) | Lower (50-60% of normal) |
| Range of Motion | Excellent - near normal gliding | Poor - restricted by adhesions |
| Clinical Strategy | Early controlled motion promotes intrinsic | Immobilization promotes extrinsic (avoid) |
Zone 2 Flexor Tendon Healing
Zone 2 (no man's land) has worst prognosis because: (1) Poor intrinsic healing potential (avascular), (2) Enclosed synovial sheath promotes extrinsic healing and adhesions, (3) Long finger flexion excursion (8-9cm) requires extensive gliding, (4) Critical balance between early motion (prevent adhesions) and protection (prevent rupture). Requires 4-strand core suture minimum for early motion protocols.
Clinical Relevance

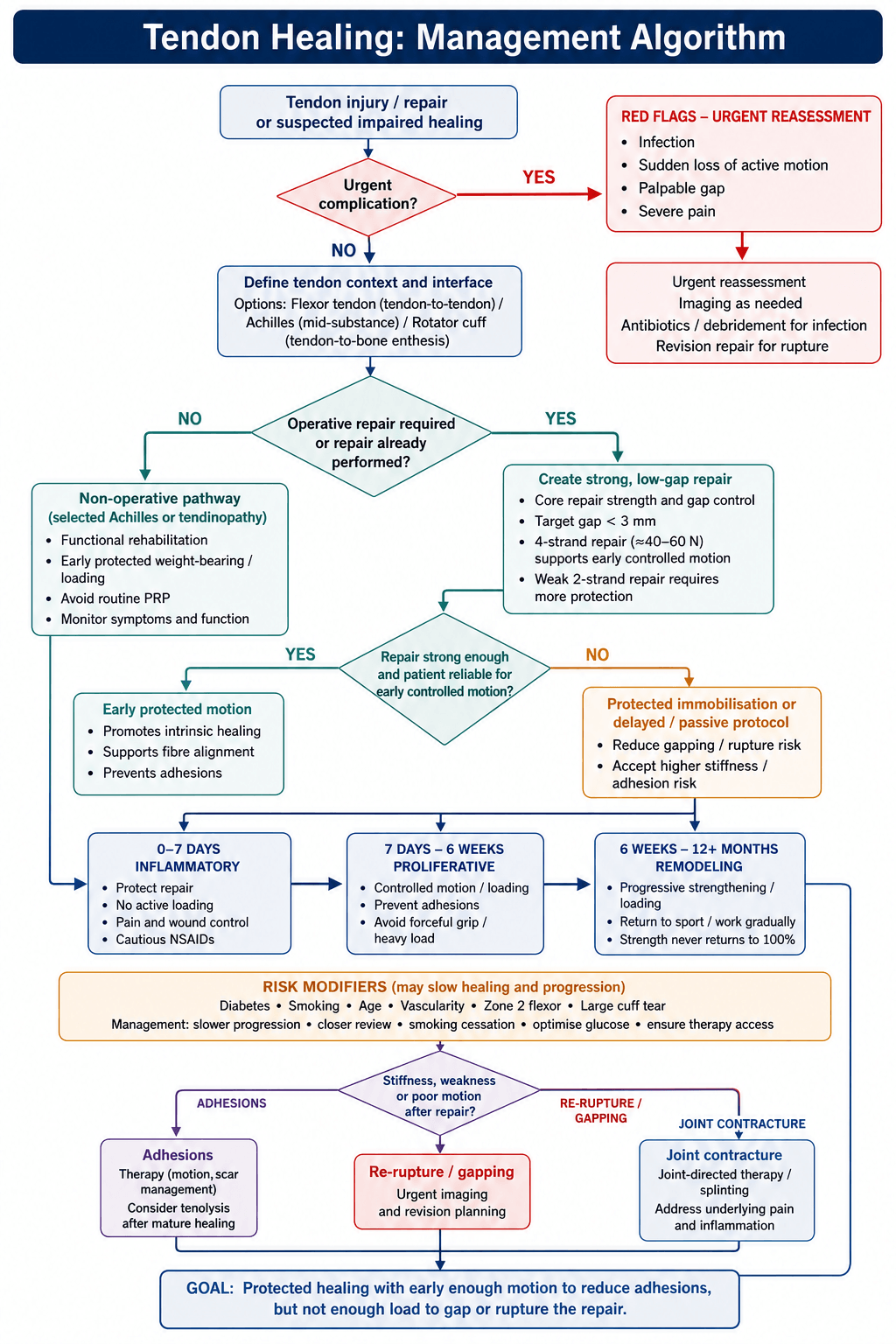

Clinical Applications and Implications
Understanding tendon healing biology directly informs clinical decision-making and patient management across multiple scenarios.
Flexor Tendon Repair:
- Zone 2 requires 4-strand core suture minimum for early motion
- Duran, Kleinert, Indiana, Mayo protocols all based on healing biology
- Early motion (weeks 0-6) prevents adhesions during proliferative phase
- Protected loading until 6 weeks when remodeling begins

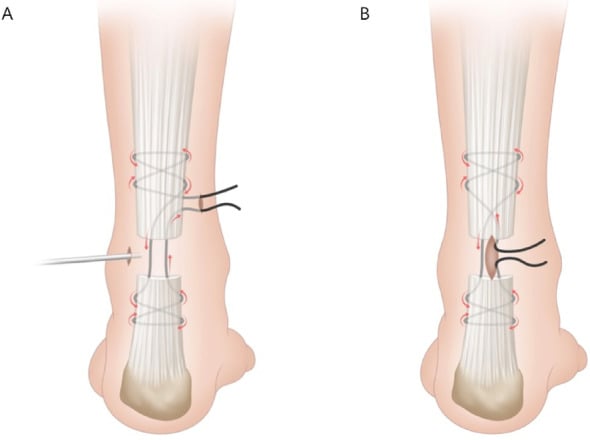

Achilles Tendon Repair:
- Immobilization in equinus for inflammatory phase (0-2 weeks)
- Controlled dorsiflexion starting at 2 weeks (proliferative phase)
- Progressive loading from 6 weeks (remodeling phase)
- Full weight-bearing by 8-12 weeks
- Return to sport at 6-9 months (60-80% strength restoration)

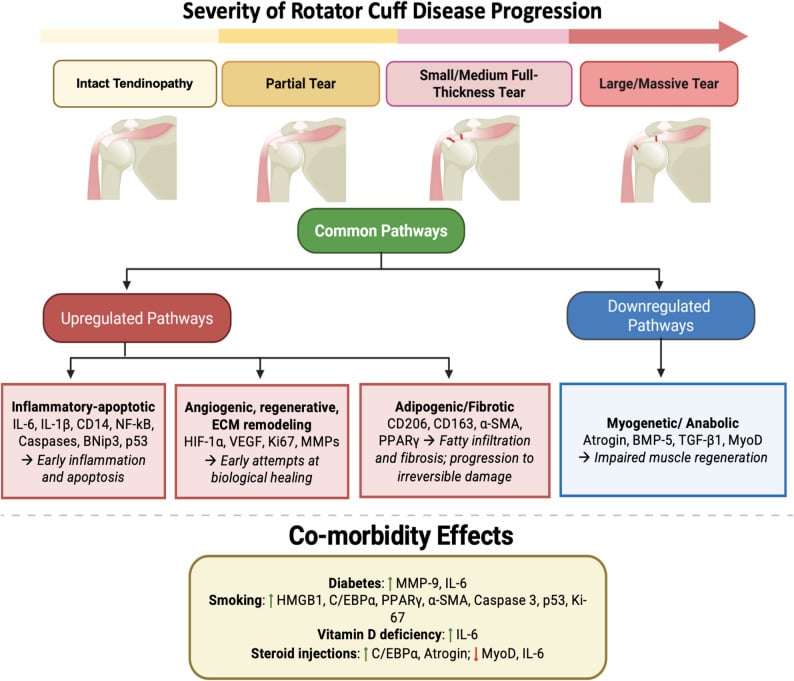

Rotator Cuff Repair:
- Strong initial fixation allows early passive motion
- Avoid active loading during inflammatory phase (0-6 weeks)
- Progressive strengthening during remodeling (6+ weeks)
- Biological augmentation (PRP, patches) targets proliferative phase
- Re-tear risk highest in first 3 months (weak collagen III phase)
Patient Counseling:
- Healing never restores 100% of normal strength
- Re-rupture risk persists lifelong (60-80% final strength)
- Smoking cessation essential (impairs all phases)
- Diabetes control critical (affects macrophages, collagen synthesis)
- Early compliance with rehabilitation determines final outcome
Molecular Biology and Growth Factors

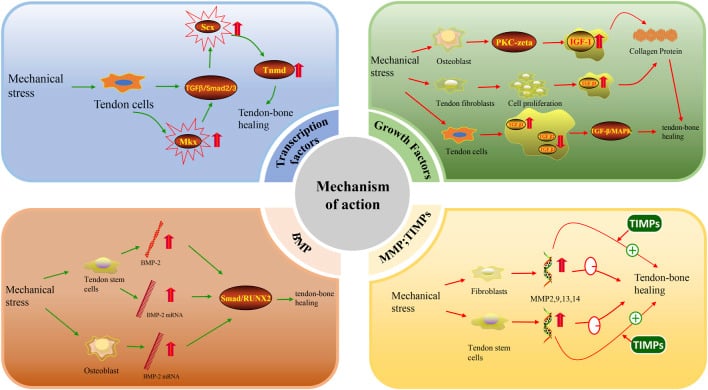

Growth Factors Regulating Tendon Healing
Growth factors released from platelets, inflammatory cells, and healing tissue cells orchestrate the healing process. Understanding their roles explains therapeutic targets and potential augmentation strategies.
Transforming Growth Factor-Beta (TGF-β):
- Most abundant growth factor in tendon healing
- Three isoforms: TGF-β1 (pro-fibrotic), TGF-β2 (intermediate), TGF-β3 (anti-scarring)
- Stimulates fibroblast proliferation and collagen synthesis
- High levels associated with adhesion formation
- Potential target: reduce TGF-β1 or supplement TGF-β3 to minimize scarring
Vascular Endothelial Growth Factor (VEGF):
- Master regulator of angiogenesis
- Peaks at 1-2 weeks, essential for delivering nutrients and cells
- Biphasic role: beneficial early (healing), detrimental late (chronic tendinopathy)
- Anti-VEGF therapies investigated for chronic tendinopathy
Insulin-Like Growth Factor-1 (IGF-1):
- Promotes tenocyte proliferation and Type I collagen synthesis
- Enhances matrix protein production
- Anti-apoptotic (supports cell survival)
- Component of growth hormone-stimulated healing
Platelet-Derived Growth Factor (PDGF):
- Released from platelet alpha granules
- Chemotactic for fibroblasts and inflammatory cells
- Stimulates cell proliferation
- Component of PRP preparations
Basic Fibroblast Growth Factor (bFGF):
- Stimulates fibroblast proliferation and angiogenesis
- Enhances collagen synthesis
- Improves tensile strength in animal models
- Investigated as therapeutic agent
Factors Affecting Healing
Clinical and Biological Factors Influencing Outcome
Vascular Supply:
- Better blood supply correlates with better healing
- Zone 2 flexor tendons (avascular) heal poorly
- Achilles watershed zone (2-6cm proximal to insertion) ruptures frequently
- Compromised vascularity slows all phases of healing
Zone-Specific Considerations (Flexor Tendons):
- Zone 1: Good vascularity, favorable outcomes
- Zone 2: Poor vascularity, enclosed sheath, worst outcomes
- Zone 3-5: Excellent vascularity, favorable outcomes
- Rehabilitation protocols must be zone-specific
Motion vs Immobilization:
- Early controlled motion: Promotes intrinsic healing, aligns fibers, reduces adhesions, improves final strength
- Immobilization: Promotes extrinsic healing, adhesions, disorganized collagen, weaker outcome
- Optimal window: Enough motion to stimulate healing, not so much to cause gapping
Repair Quality:
- Gap healing (less than 3mm) produces organized tendon with minimal adhesions
- Proliferative healing (greater than 3mm gap) requires extensive granulation tissue and adhesions

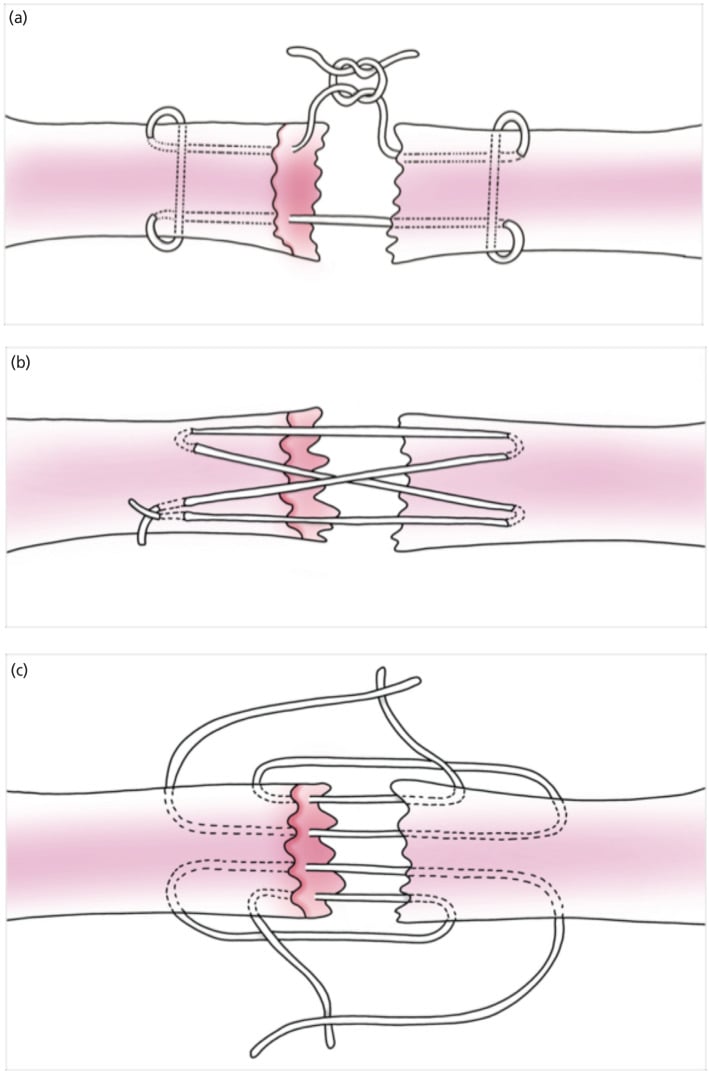

- Strong repair (4-strand core suture, 40-60N) allows early motion
- Weak repair (2-strand, 20-30N) requires longer immobilization
Age:
- Children and adolescents: Faster healing, better intrinsic response, lower adhesion rates
- Older adults: Slower healing, reduced cellularity, higher adhesion rates
- Healing time increases approximately 10% per decade after age 30
Diabetes:
- Impaired macrophage function (delayed M1 to M2 transition)
- Reduced tenocyte proliferation and collagen synthesis
- Impaired cross-linking (advanced glycation end products)
- Higher re-rupture rates (2-3x for Achilles)
Smoking:
- Vasoconstriction reduces blood flow
- Tissue hypoxia from carbon monoxide
- Reduced fibroblast proliferation and collagen synthesis
- Cessation 4+ weeks pre-op reduces complications
Medications:
- NSAIDs: May impair early inflammatory phase (evidence mixed)
- Corticosteroids: Inhibit collagen synthesis, delay healing
- Quinolone antibiotics: Associated with tendon ruptures
Evidence Base
Three Phases of Tendon Healing Characterized
- Inflammatory phase (0-7 days): Hematoma, inflammatory cells, fibrin clot, minimal strength
- Proliferative phase (7 days-6 weeks): Tenocyte proliferation, Type III collagen synthesis, neovascularization, strength to 30%
- Remodeling phase (6 weeks-12+ months): Type I collagen replaces III, fiber alignment, strength to 60-80%
- Healing never fully restores native tendon structure or biomechanical properties
Early Controlled Motion Superior to Immobilization
- Canine flexor tendon repair model with early passive motion vs immobilization
- Early motion group: Better tensile strength, less adhesions, improved excursion
- Motion promoted intrinsic tenocyte-mediated healing over extrinsic fibroblast healing
- Immobilization resulted in dense adhesions and weak disorganized collagen
Growth Factors in Tendon Healing - TGF-β Dual Role
- TGF-β1 and TGF-β2 promote collagen synthesis and cell proliferation (healing) but also cause adhesions
- TGF-β3 reduces adhesion formation in animal models without impairing healing
- Exogenous TGF-β1 application increased repair strength but worsened adhesions
- Blocking TGF-β reduced adhesions but also reduced healing strength
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination
Scenario 1: Flexor Tendon Healing Biology
"Examiner asks: Describe the biology of flexor tendon healing after surgical repair. Why do Zone 2 injuries have poor outcomes?"
Scenario 2: Early Motion vs Immobilization
"A 35-year-old laborer sustains a complete Zone 2 FDP laceration. After 4-strand core suture repair, should you immobilize or use early motion protocol? Justify your answer with the healing biology."
Scenario 3: Growth Factors and Biological Augmentation
"The patient asks about platelet-rich plasma injection to speed healing of his Achilles tendon repair. Discuss the growth factors involved in tendon healing and the evidence for PRP use."
Key Exam Points and MCQ Practice
Three Phases Question
Q: What are the three phases of tendon healing and their approximate durations? A: Inflammatory (0-7 days), Proliferative (7 days to 6 weeks), Remodeling (6 weeks to 12+ months). Phases overlap and exact timing varies by tendon type and injury severity.
Collagen Type Question
Q: Which collagen type appears first during tendon healing and what is the final Type I:III ratio? A: Type III collagen appears first (1-2 weeks), forming disorganized scar. Gradually replaced by Type I over months. Normal ratio is 19:1 but healed tendon achieves only 2:1 to 3:1 at 12+ months.
Intrinsic vs Extrinsic Question
Q: What is the difference between intrinsic and extrinsic tendon healing? A: Intrinsic: Tenocytes proliferate and synthesize organized matrix - minimal adhesions, better function. Extrinsic: Peritendinous fibroblasts invade and deposit scar - adhesions form, poorer function. Early motion promotes intrinsic over extrinsic.
Growth Factor Question
Q: Which growth factor is most abundant in tendon healing and what is its dual role? A: TGF-β (particularly β1 isoform) is most abundant. Dual role: essential for collagen synthesis and healing, but excess causes scarring and adhesions. TGF-β3 has anti-scarring properties.
Final Strength Question
Q: What percentage of normal tendon strength is achieved by healed tendon at 12 months? A: 60-80% of normal tensile strength. Never reaches 100% due to persistent Type III collagen, suboptimal fiber alignment, and altered matrix composition. Explains ongoing re-rupture risk.
Zone 2 Question
Q: Why do Zone 2 flexor tendon injuries have the poorest prognosis? A: Four reasons: (1) Avascular - poor intrinsic healing, (2) Enclosed flexor sheath - promotes extrinsic healing and adhesions, (3) High excursion (7-8cm gliding) - adhesions severely limit function, (4) Critical balance - need aggressive early motion (prevent adhesions) but higher re-rupture risk.
Management Algorithm
TENDON HEALING
High-Yield Exam Summary

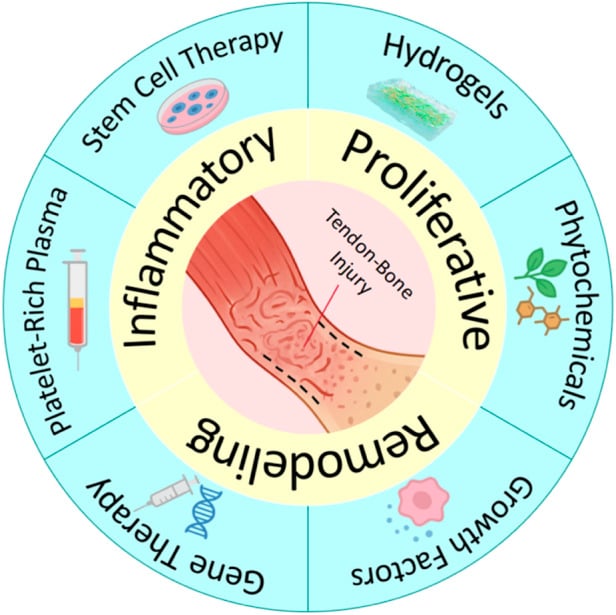

Three Phases
- •Inflammatory (0-7 days): Hematoma, neutrophils then macrophages (M1 to M2), growth factors released, minimal strength (0-10%)
- •Proliferative (7d-6wk): Tenocyte proliferation, Type III collagen synthesis, neovascularization peaks (3-4wk), strength to 30%
- •Remodeling (6wk-12+mo): Type I replaces Type III, fiber alignment, MMP remodeling, strength to 60-80%
Intrinsic vs Extrinsic
- •Intrinsic: Tenocytes synthesize organized collagen, minimal adhesions, better function (promote with early motion)
- •Extrinsic: Peritendinous fibroblasts deposit scar, adhesions, poorer function (minimize by early motion)
- •Early controlled motion promotes intrinsic over extrinsic healing
Collagen Transition
- •Type III (thin, weak) appears first at 1-2 weeks, peaks at 2-3 weeks
- •Type I (thick, strong) replaces Type III from 6 weeks onward
- •Type I:III ratio: Normal 19:1, Healed 2:1 to 3:1 (never returns to normal)
- •Tensile strength correlates with Type I content and fiber alignment
Key Growth Factors
- •PDGF: Chemotactic, recruits cells (early phase)
- •TGF-β: Collagen synthesis, cell proliferation (but excess causes scarring)
- •VEGF: Angiogenesis (peaks 1-2 weeks, needed early, problematic if persistent)
- •IGF-1: Tenocyte proliferation, Type I collagen synthesis
- •bFGF: Cell proliferation, matrix synthesis, synergy with VEGF
Factors Affecting Healing
- •Vascularity: Better blood supply equals better healing (Zone 1 better than Zone 2)
- •Zone: Zone 2 flexor tendons worst (avascular, synovial sheath, high excursion)
- •Motion: Early controlled motion better than immobilization (intrinsic healing, fiber alignment, prevent adhesions)
- •Repair quality: Strong repair (4-strand, 40-60N) allows early motion without gapping
- •Biologics: Age, diabetes, smoking impair healing; NSAIDs may impair (controversial)
Clinical Pearls
- •Gap healing (under 3mm) better than proliferative healing (over 3mm, adhesions)
- •4-strand minimum for early active motion (2-strand passive only)
- •Zone 2 requires aggressive early motion protocols (Kleinert, Duran, Indiana, Mayo)
- •Final strength 60-80% explains ongoing re-rupture risk
- •PRP evidence mixed, not routine, may consider in high-risk patients
