Tendon Structure and Composition
Comprehensive overview of tendon ultrastructure, molecular composition, hierarchical organization, and biomechanical properties essential for understanding tendon pathology and healing.
Clinical Imaging
Imaging Gallery
Clinical Imaging
Tendon Histology and Ultrastructure
Exam Warning
High-yield for basic science vivas. Examiners commonly ask about hierarchical organization, collagen composition, and biomechanical properties. Know the stress-strain curve and clinical correlations with tendon healing and pathology.

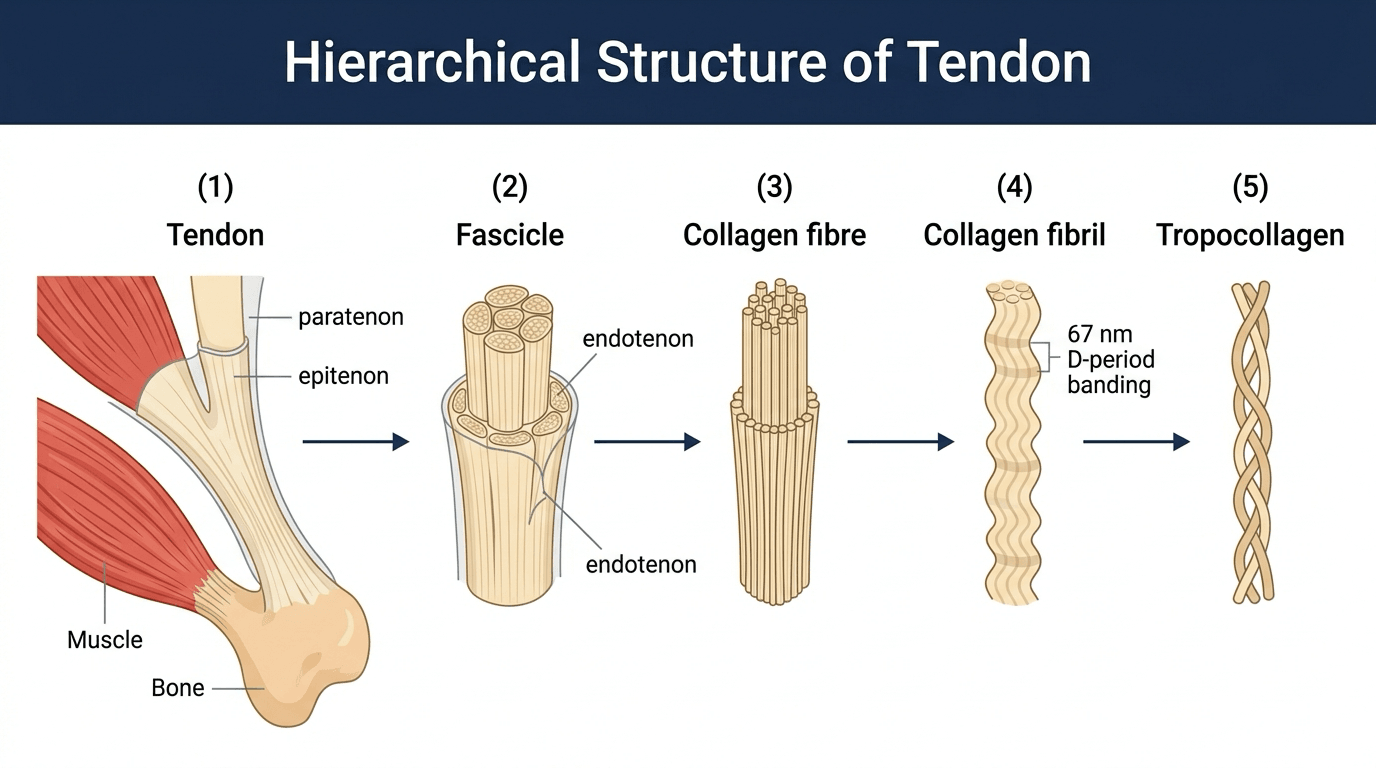

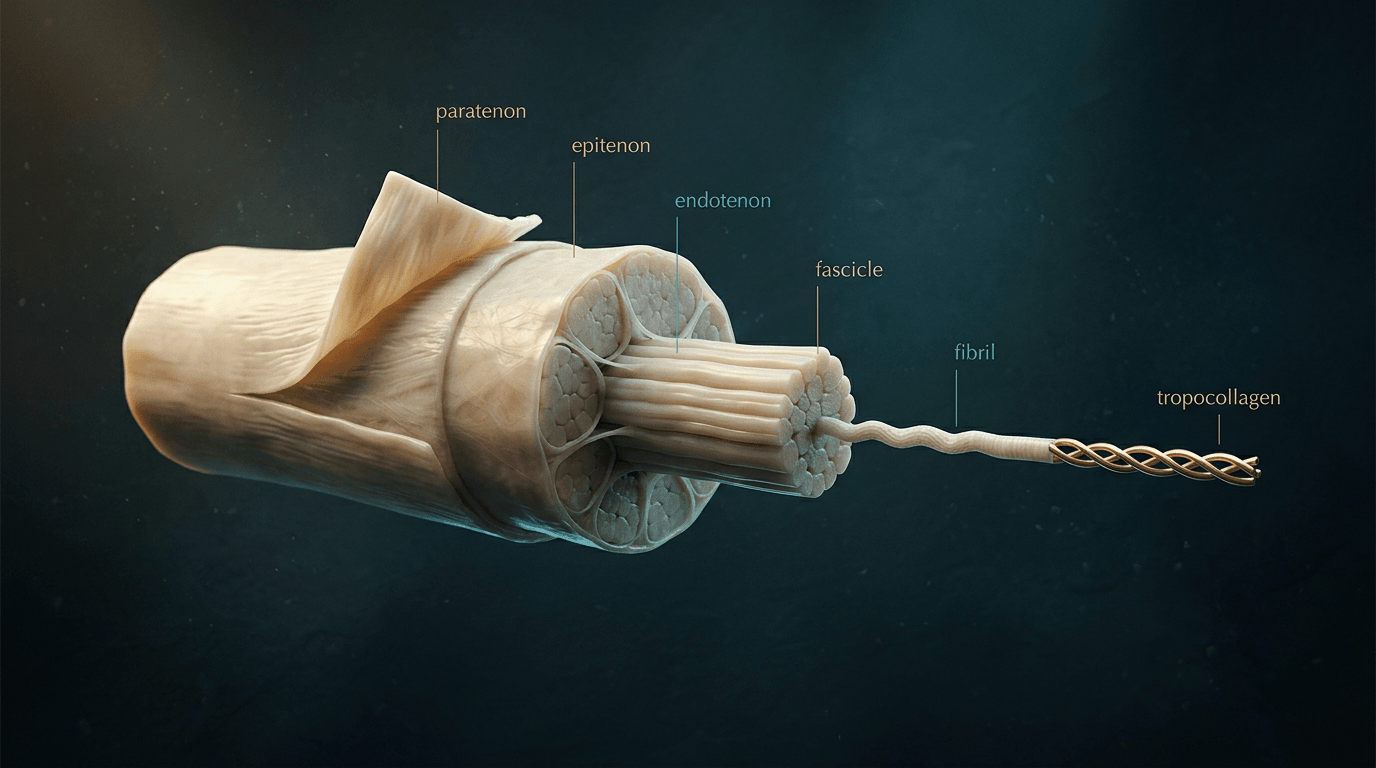

Hierarchical Organization of Tendon Structure
Molecular to Macroscopic Architecture
Tendons exhibit a highly organized hierarchical structure spanning multiple scales from nanometers to centimeters. This organization is critical for understanding both normal function and pathological processes.
Level 1: Tropocollagen Molecule
The fundamental building block is the tropocollagen molecule, a triple helix approximately 300 nanometers in length and 1.5 nanometers in diameter. Each molecule consists of three polypeptide chains (two alpha-1 chains and one alpha-2 chain) wound in a right-handed triple helix configuration.
The amino acid sequence follows a Gly-X-Y repeating pattern where glycine occupies every third position, allowing tight helical packing. Proline and hydroxyproline commonly occupy the X and Y positions, providing structural stability. Post-translational hydroxylation of proline and lysine residues requires vitamin C as a cofactor, explaining the tendon pathology seen in scurvy.
Level 2: Collagen Fibril
Tropocollagen molecules assemble into collagen fibrils with diameters ranging from 20 to 400 nanometers. Molecules are arranged in a quarter-stagger array, with each molecule offset by 67 nanometers from its neighbor. This creates the characteristic 67-nanometer D-period banding pattern visible on electron microscopy.
Enzymatic cross-linking occurs between molecules via lysyl oxidase-mediated oxidative deamination of lysine and hydroxylysine residues. These covalent cross-links provide tensile strength and stability to the fibrillar structure. The density and maturity of cross-links increase with age and loading history.
Level 3: Collagen Fiber
Multiple collagen fibrils aggregate to form collagen fibers with diameters between 1 and 20 micrometers. The interfibrillar matrix contains proteoglycans, particularly decorin and biglycan, which regulate fibril diameter and spacing. Small leucine-rich proteoglycans (SLRPs) bind to specific sites on collagen fibrils, controlling lateral fusion and maintaining optimal fibril geometry.
Level 4: Fascicle
Collagen fibers bundle together to create fascicles, the first level visible under light microscopy, with diameters ranging from 50 to 300 micrometers. Fascicles are surrounded by endotenon, a fine connective tissue sheath containing blood vessels, lymphatics, and nerves. The endotenon facilitates interfascicular sliding, reducing internal friction during tendon excursion.
Level 5: Tendon Unit
Multiple fascicles combine to form the complete tendon, enclosed by epitenon (inner layer) and paratenon (outer layer). The epitenon is a thin connective tissue layer directly covering the tendon surface. The paratenon is a loose areolar tissue that allows gliding against adjacent structures. Together, these layers constitute the peritenon in non-synovial tendons.
For synovial tendons (such as flexor tendons in the hand), a synovial sheath replaces the paratenon, consisting of visceral and parietal layers separated by synovial fluid. This specialized environment reduces friction in regions of high angular deviation.
At a Glance
Tendons exhibit a hierarchical organization spanning five levels: tropocollagen molecules (300nm) assemble into collagen fibrils (20-400nm) with characteristic 67nm D-period banding, which bundle into fibers (1-20μm), then fascicles (50-300μm) surrounded by endotenon, forming the complete tendon unit enclosed by epitenon and paratenon. Type I collagen comprises 95% of healthy tendon; during healing and in tendinopathy, Type III collagen increases (thinner fibrils, reduced strength). The crimp pattern allows initial elastic deformation before collagen loading. Blood supply is poorest in mid-substance creating vulnerable watershed zones. Understanding this hierarchy explains why tendon healing progresses over months and rarely achieves pre-injury mechanical properties.
Memory Hook:Think Building a Tower: Tiny Molecules → Final Building
Molecular Composition
Collagen Types and Distribution
Type I Collagen: The Dominant Component
Type I collagen accounts for approximately 95 percent of the total collagen content in mature, healthy tendons. This fibrillar collagen provides the primary tensile strength and stiffness required for force transmission from muscle to bone.
The molecular structure of type I collagen features a heterotrimeric composition with two alpha-1(I) chains and one alpha-2(I) chain, encoded by COL1A1 and COL1A2 genes respectively. Mutations in these genes cause osteogenesis imperfecta, which frequently presents with tendon and ligament laxity in addition to bone fragility.
Type III Collagen: The Healing Response
Type III collagen comprises less than 5 percent of normal tendon collagen but increases dramatically during healing and in chronic tendinopathy. This collagen type forms thinner fibrils (less than 50 nanometers) compared to type I, resulting in reduced mechanical strength.
During tendon healing, type III collagen appears early in the proliferative phase as a rapid but mechanically inferior repair response. Over months to years, the ratio of type III to type I gradually decreases as remodeling progresses, though healing tendons rarely achieve the normal 95:5 ratio, explaining persistent mechanical deficits after repair.
Chronic tendinopathy demonstrates persistently elevated type III collagen, with ratios sometimes approaching 50 percent or more. This aberrant composition contributes to reduced tensile strength and increased risk of rupture.
Minor Collagens
Type V collagen (2-3 percent) forms heterotypic fibrils with type I collagen and regulates fibril diameter. It is predominantly found in the fibril core and appears critical for initiating fibrillogenesis during development and healing.
Type VI collagen forms beaded microfibrils in the interfibrillar matrix and likely contributes to interfibrillar cohesion and mechanical integration. It may also play a role in cell-matrix signaling.
Type X collagen appears specifically at the fibrocartilaginous enthesis where tendons insert into bone, contributing to the specialized transitional tissue zone.
Collagen Types in Tendon Tissue
| feature | characteristics | percentage | fibrilDiameter | function | distribution | clinicalCorrelation |
|---|---|---|---|---|---|---|
| Type I Collagen | Heterotrimeric (2 α1, 1 α2 chains) | 95% of total collagen | 50-400 nm large fibrils | Primary tensile strength | Throughout tendon substance | Decreased in tendinopathy; OI mutations cause laxity |
| Type III Collagen | Homotrimeric (3 α1 chains) | Less than 5% (normal) | Less than 50 nm thin fibrils | Early healing response | Increased in healing/pathology | Elevated in chronic tendinopathy and repair tissue |
| Type V Collagen | Heterotypic with type I | 2-3% of total | Forms fibril core | Regulates fibril diameter | Fibril nucleation sites | Critical for fibrillogenesis during healing |
| Type VI Collagen | Forms beaded microfibrils | Less than 1% | Not applicable (microfibrillar) | Interfibrillar cohesion | Interfibrillar matrix | May mediate cell-matrix communication |
Non-Collagenous Matrix Components
Proteoglycans and Glycoproteins
Proteoglycans constitute approximately 1 to 5 percent of tendon dry weight but exert effects disproportionate to their mass. These molecules consist of a core protein with covalently attached glycosaminoglycan (GAG) chains.
Small Leucine-Rich Proteoglycans (SLRPs) are the dominant class in tendons:
Decorin is the most abundant SLRP, binding to type I collagen fibrils at specific sites aligned with the D-period. It regulates fibril diameter by limiting lateral fusion and maintains optimal interfibrillar spacing. Decorin knockout mice develop irregular, enlarged collagen fibrils with reduced mechanical properties. In human tendinopathy, decorin levels are often decreased, potentially contributing to abnormal fibril geometry.
Biglycan shares structural homology with decorin but binds different sites on collagen and may serve distinct regulatory functions. It increases during tendon healing and in response to mechanical loading.
Fibromodulin and lumican also belong to the SLRP family and participate in collagen fibril assembly and organization.
Large Aggregating Proteoglycans:
Aggrecan is present in compressed regions of tendons, particularly at entheses and sites of angular deviation where tendons wrap around bony prominences. Its large GAG chains (chondroitin sulfate and keratan sulfate) provide compressive resilience through hydration and electrostatic repulsion.
Versican appears in lower concentrations and may play a role in cell adhesion and tissue hydration.
Glycoproteins
Tenascin-C is expressed during development, healing, and in response to mechanical loading. It modulates cell adhesion and migration and may regulate collagen fibrillogenesis.
Thrombospondins participate in cell-matrix interactions and have been implicated in mechanotransduction pathways.
Cartilage oligomeric matrix protein (COMP) is found in compressed regions and may contribute to collagen fibril assembly and stabilization. Serum COMP levels have been investigated as a biomarker for tendon pathology and healing.
Elastin
Elastin comprises approximately 1 to 2 percent of tendon dry weight in most tendons but reaches higher concentrations (up to 30 percent) in specialized elastic tendons like the nuchal ligament. Elastin fibers are interspersed among collagen fibrils and contribute to elastic recoil after deformation, particularly in the toe region of the stress-strain curve.
Memory Hook:Dancing Big Fibrous Lumps Arrange Collagen
Cellular Components
Tenocytes and Tenoblasts
Tenocyte Characteristics
Tenocytes are the primary cellular component of mature tendons, accounting for approximately 90 to 95 percent of the cellular population. These specialized fibroblasts are arranged in longitudinal rows parallel to collagen fiber orientation, a pattern visible on histological sections as elongated nuclei aligned with the long axis of the tendon.
Tenocyte density varies by anatomical location and age, ranging from approximately 15 percent cellularity in highly loaded tendons to 25 percent in less mechanically active regions. With aging, tenocyte density decreases while cell shape becomes more rounded, potentially contributing to age-related tendon degeneration.
Individual tenocytes extend long cytoplasmic processes that contact neighboring cells, forming a mechanosensitive network that spans the tissue. Gap junctions between adjacent cells allow intercellular communication and coordinated responses to mechanical stimuli.
Functions of Tenocytes
Matrix Synthesis and Maintenance: Tenocytes synthesize all major extracellular matrix components including type I collagen, proteoglycans, and glycoproteins. In healthy adult tendons, matrix turnover is slow, with collagen half-life estimated at 50 to 100 years or longer. However, tenocytes maintain the capacity to upregulate synthesis in response to injury or altered loading.
Mechanotransduction: Tenocytes sense mechanical loads through multiple mechanisms including integrin-mediated cell-matrix adhesions, stretch-activated ion channels, and primary cilia. Mechanical stimuli activate intracellular signaling cascades (including FAK, ERK, and Rho/ROCK pathways) that regulate gene expression and matrix synthesis.
Physiological loading maintains tenocyte homeostasis and promotes appropriate matrix production. Insufficient loading (immobilization) leads to matrix degradation and atrophy, while excessive or abnormal loading can trigger pathological responses including inflammation and aberrant matrix remodeling.
Matrix Degradation: Tenocytes produce matrix metalloproteinases (MMPs), particularly MMP-1 (collagenase-1), MMP-3 (stromelysin-1), and MMP-13 (collagenase-3), which degrade collagen and other matrix components. These enzymes are balanced by tissue inhibitors of metalloproteinases (TIMPs). Dysregulation of the MMP/TIMP balance is implicated in tendinopathy pathogenesis.
Tenoblasts
Tenoblasts are the immature, proliferative precursors of tenocytes, prominent during development, growth, and healing. They exhibit higher metabolic activity, greater synthetic capacity, and increased proliferation rates compared to mature tenocytes.
During tendon healing, resident tenocytes de-differentiate to a more tenoblast-like phenotype, proliferating and producing abundant matrix. Complete re-differentiation to mature tenocytes may be incomplete, contributing to inferior mechanical properties of healed tendons.
Other Cell Types
Tendon stem/progenitor cells have been identified in specialized niches, particularly in the peritenon and at vascular sites. These cells exhibit multipotency and can differentiate into tenocytes, adipocytes, chondrocytes, and osteocytes under appropriate stimuli. Their role in homeostasis and healing is an active area of research.
Synovial cells line the inner surface of synovial sheaths in tendons with high angular deviation. They produce synovial fluid components including hyaluronic acid and lubricin, reducing friction during tendon excursion.
Vascular and neural cells are sparse within tendon substance but more abundant in surrounding tissues. Endothelial cells line the limited vascular network, while nerve fibers (primarily sensory and sympathetic) provide nociceptive and proprioceptive innervation.
Vascular and Neural Supply
Overview
Tendon vascularity and innervation represent critical determinants of both function and healing capacity. Unlike highly vascular tissues, tendons exhibit remarkably limited blood supply, with vessels accounting for only 1 to 2 percent of cross-sectional area. This sparse vascularity, while beneficial for reducing metabolic demands during repetitive loading, significantly constrains healing potential after injury.
Blood Supply Sources
Three Main Vascular Contributions:
- Musculotendinous junction - extensions from muscle vasculature
- Osseous insertion - periosteal and bone vessels at enthesis
- Peritendinous tissues - paratenon or synovial sheath
The dominant supply varies by anatomical location, with peritendinous contribution most important for mid-substance nutrition.
Neural Components
Innervation Pattern:
- Type I/II fibers - mechanoreceptors (Golgi tendon organs, Ruffini, Pacinian)
- Type III/IV fibers - nociceptors (substance P, CGRP)
- Sympathetic fibers - vascular regulation
Neural density highest in peritenon and enthesis, sparse in mid-substance.
Blood Supply Patterns
Vascular Anatomy
Tendon vascularity is generally poor compared to other musculoskeletal tissues, with blood vessels accounting for only 1 to 2 percent of cross-sectional area. This limited vascularity contributes to slow healing rates and susceptibility to ischemic injury.
Blood supply typically derives from three sources:
Musculotendinous junction: Vessels from the muscle belly extend into the proximal tendon for a variable distance.
Osseous insertion: Vascular channels penetrate from the bone into the enthesis region, though this contribution is modest in most tendons.
Peritendinous tissues: The paratenon or synovial sheath provides the dominant blood supply in most tendons, with vessels running longitudinally in the epitenon and sending perpendicular branches into the tendon substance through the endotenon.

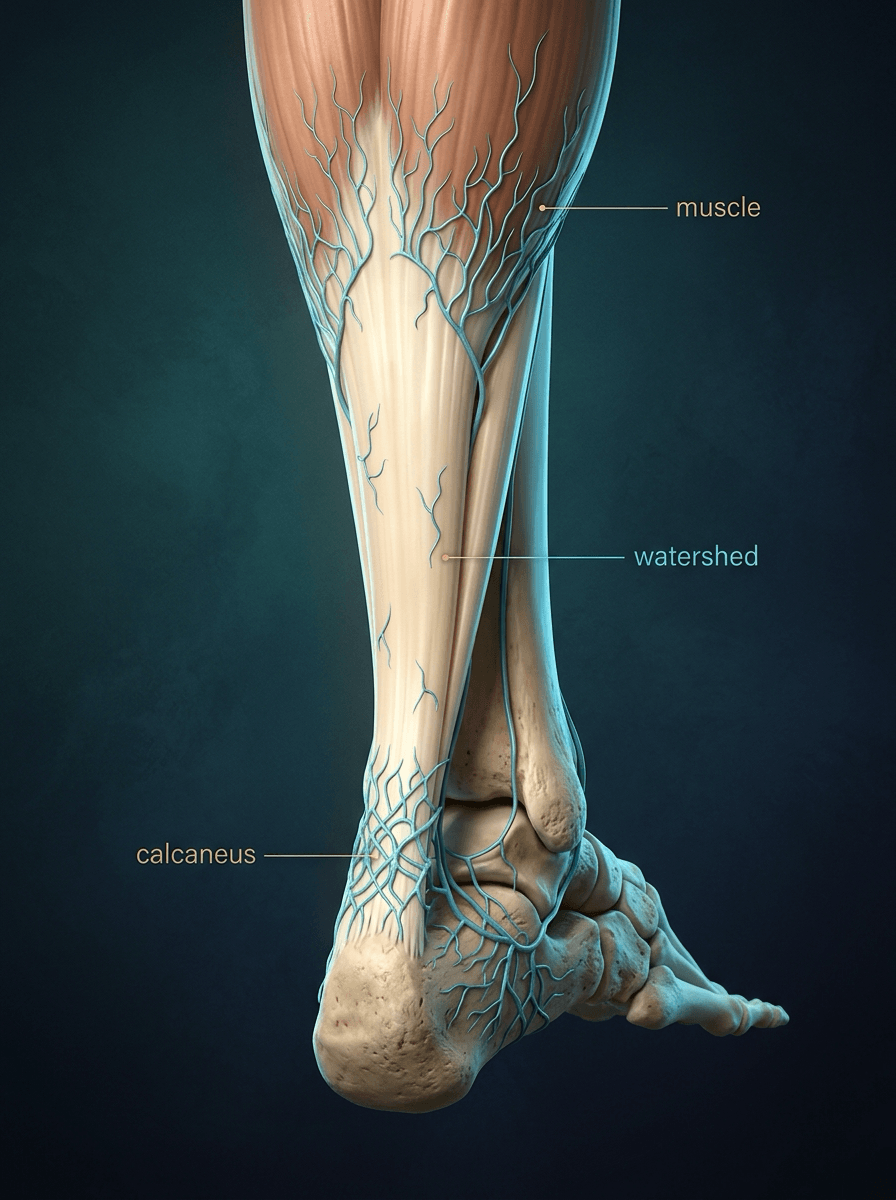

Watershed Zones
Certain tendons exhibit poorly vascularized regions or "watershed zones" where blood supply from different sources is marginal. The most clinically significant examples include:
Achilles tendon: A zone of hypovascularity exists 2 to 6 centimeters proximal to the calcaneal insertion, corresponding to the most common site of rupture in adults.
Supraspinatus tendon: The critical zone near the insertion demonstrates relative hypovascularity, potentially contributing to the high prevalence of rotator cuff pathology and tears in this region.
Flexor pollicis longus: Watershed areas exist where avascular segments may predispose to rupture or delayed healing.
These vascular patterns have important clinical implications for healing potential and surgical decision-making regarding repair versus reconstruction.
Neural Supply
Tendon innervation is more extensive than previously recognized, with important sensory and proprioceptive functions. Three main classes of nerve fibers are present:
Type I and II sensory fibers (myelinated) form specialized mechanoreceptors including Golgi tendon organs, Ruffini corpuscles, and Pacinian corpuscles. These provide proprioceptive feedback regarding tension and position.
Type III and IV sensory fibers (thinly myelinated or unmyelinated) mediate nociception. Substance P and calcitonin gene-related peptide (CGRP) are neurotransmitters associated with pain pathways.
Sympathetic fibers may regulate vascular tone and have been implicated in some chronic pain syndromes.
Neural density is highest in the peritenon and enthesis, with sparser innervation in the mid-substance. Painful tendinopathy often correlates with neovascularization accompanied by neoinnervation, suggesting neurovascular ingrowth as a substrate for pain generation.
Specialized Regions

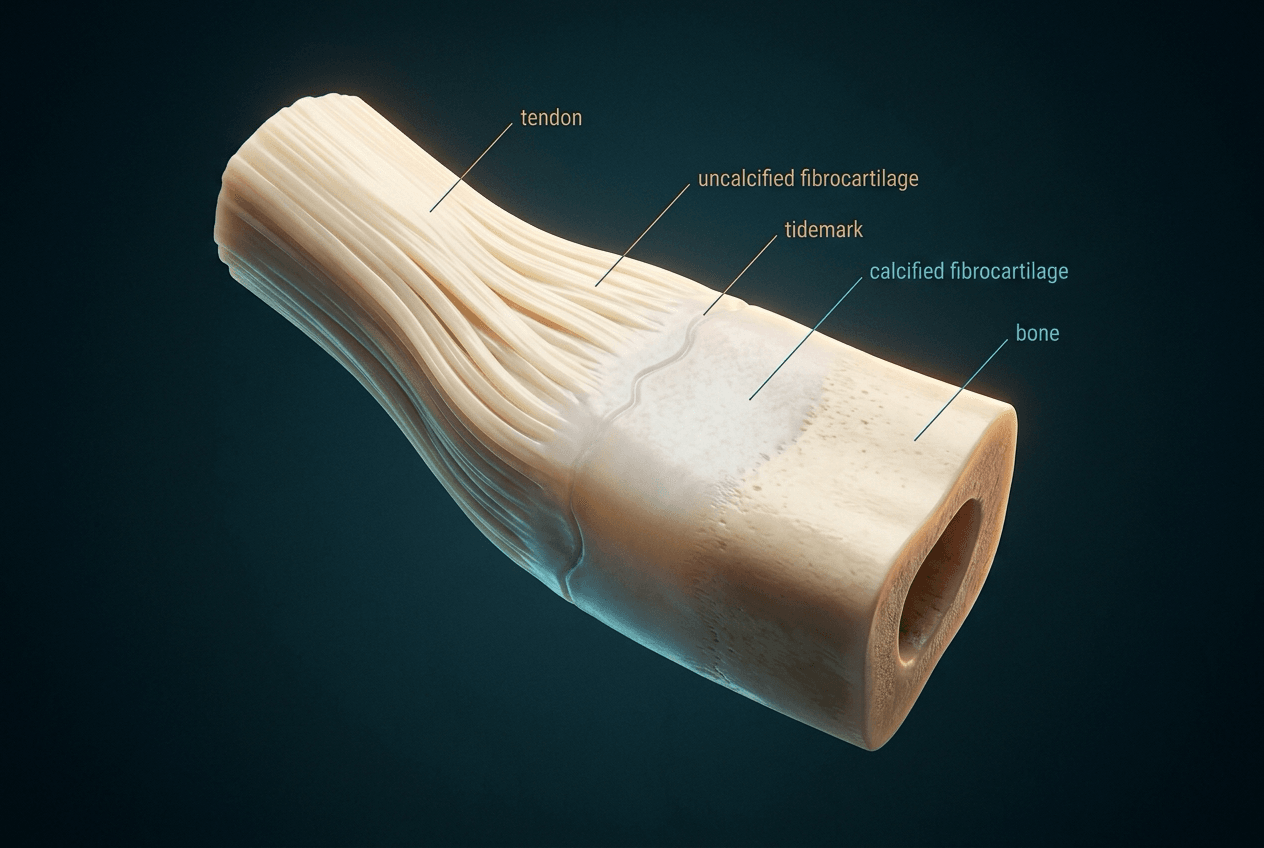

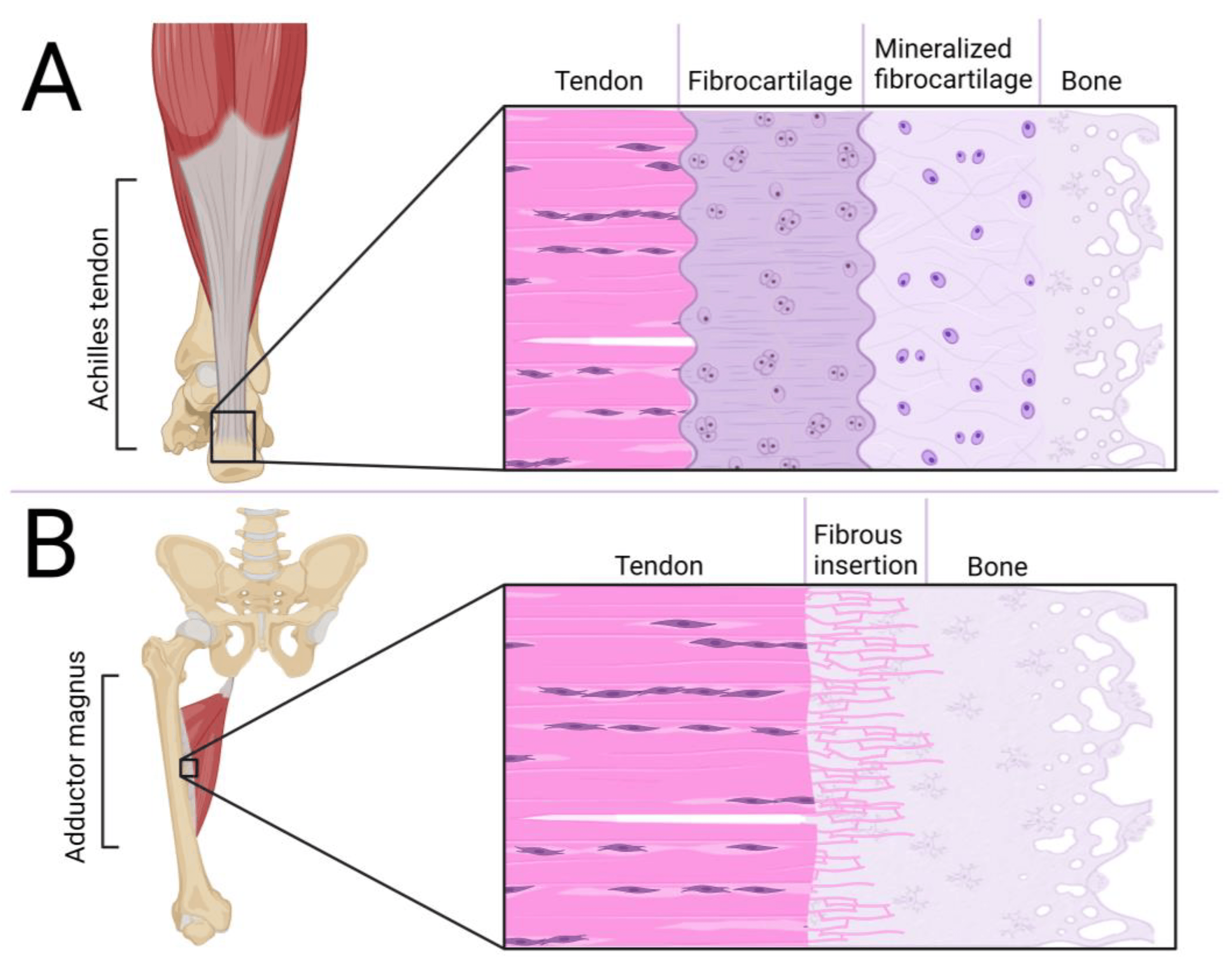

The Enthesis: Tendon-Bone Interface
Fibrocartilaginous Enthesis
Most major load-bearing tendons insert into bone via a fibrocartilaginous enthesis, a specialized transitional zone that gradually changes material properties from compliant tendon to rigid bone over a distance of approximately 1 millimeter. This gradual transition minimizes stress concentrations that would occur at an abrupt interface.
The enthesis exhibits four distinct zones observable on histology:
Zone 1 - Tendon proper: Aligned type I collagen fibers with elongated tenocytes arranged in longitudinal rows.
Zone 2 - Uncalcified fibrocartilage: Rounded fibrocartilage cells (chondrocyte-like) embedded in a matrix of type II collagen, aggrecan, and other cartilage-associated molecules. This zone provides compressive resilience.
Zone 3 - Calcified fibrocartilage: Similar cellular and matrix composition to zone 2 but with mineral deposition (hydroxyapatite crystals). The boundary between zones 2 and 3 is marked by the "tidemark," visible as a basophilic line on histology.
Zone 4 - Bone: Mineralized bone with osteocytes in lacunae. Collagen fibers from the tendon (Sharpey fibers) extend into and integrate with bone matrix, providing mechanical anchorage.
This zonal organization creates a functional gradient in mechanical properties, with elastic modulus increasing progressively from approximately 200 MPa in tendon to 20 GPa in cortical bone.
Periosteal Enthesis
Some tendons attach directly to periosteum without an intervening fibrocartilaginous zone. These periosteal or fibrous entheses are more common in regions without significant compressive loading. Examples include portions of the rotator cuff insertion on the greater tuberosity. These attachments are generally weaker and more susceptible to avulsion injuries.
Clinical Significance
Enthesopathies encompass a range of pathological conditions affecting the tendon-bone interface, including:
Insertional tendinopathy: Degenerative changes in the enthesis fibrocartilage, often with calcification, bone marrow edema, and sometimes enthesophyte formation. Common sites include the Achilles insertion (insertional Achilles tendinopathy) and common extensor origin at the lateral epicondyle.
Enthesitis: Inflammatory changes at the enthesis, characteristic of seronegative spondyloarthropathies (ankylosing spondylitis, psoriatic arthritis, reactive arthritis). Multiple sites may be affected simultaneously.
Avulsion injuries: Acute failure at the enthesis can occur in bone (avulsion fracture, most common in children with weaker bone), fibrocartilage (common in adults), or tendon substance (rare, indicates severe degeneration).
Surgical repair of the enthesis is challenging because the specialized zonal architecture cannot be recreated. Repairs heal with fibrovascular scar tissue lacking the normal gradient structure, explaining persistent mechanical deficits and re-tear risk after rotator cuff repair.
Biomechanical Properties
Stress-Strain Behavior

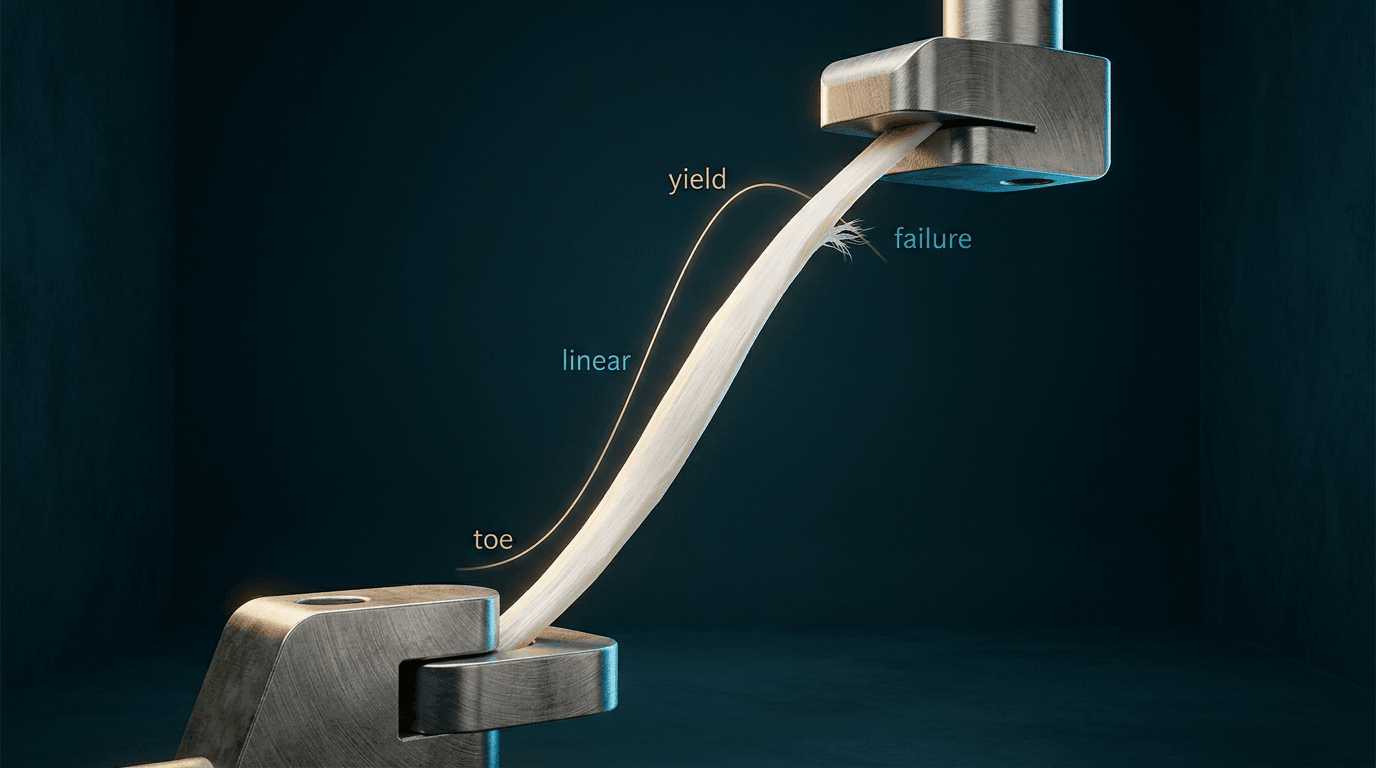

The Stress-Strain Curve
When a tendon is subjected to tensile loading, it exhibits characteristic stress-strain behavior divided into distinct regions:
Toe Region (0-2 percent strain): At low loads, the tendon elongates easily with minimal stress. This represents straightening of the crimped collagen fiber pattern. The tissue behaves in a nonlinear, compliant manner. Mechanically, this region allows initial joint motion without developing high muscle forces. The crimp pattern functions as a mechanical buffer, protecting collagen fibrils from high stresses during initiation of loading.
Linear Region (2-4 percent strain): Once crimp is eliminated, collagen fibers bear load directly, and the stress-strain relationship becomes approximately linear. The slope of this region defines the elastic modulus (Young's modulus), typically 1 to 2 GPa for tendon. In this range, deformation is recoverable; removing load allows the tendon to return to original length. Most physiological loading occurs within this elastic range.
Yield Point (4-8 percent strain): Beyond approximately 4 percent strain, microscopic damage begins to accumulate. Interfibrillar and interfascicular sliding occurs, some fibril cross-links rupture, and permanent deformation develops. The tissue has yielded and will not return to its original length. This represents subclinical injury that may heal with rest or progress to clinical tendinopathy or rupture with continued loading.
Failure Region (greater than 8 percent strain): Progressive fiber rupture occurs, with macroscopic tearing developing. Complete rupture typically occurs between 8 and 15 percent strain, though considerable variation exists based on age, conditioning, and prior pathology.
Ultimate Tensile Strength and Failure
The ultimate tensile strength of healthy young adult tendon ranges from 50 to 100 MPa, with considerable variation by anatomical site, age, and loading history. The Achilles tendon, subjected to very high physiological loads (up to 3 kN during running), demonstrates particularly high strength.
Failure typically occurs at the junction of crimp-to-linear region during acute rupture, often in the mid-substance in young individuals with sudden overload. In older individuals or those with chronic tendinopathy, the material properties are degraded (increased type III collagen, matrix disorganization, loss of cross-links), and rupture occurs at lower absolute loads, often at lower strain values.
Viscoelasticity
Tendons exhibit time-dependent mechanical behavior characteristic of viscoelastic materials:
Creep: Under constant load, tendons continue to elongate slowly over time. This is clinically relevant for bracing, splinting, and serial casting where sustained gentle tension can achieve gradual lengthening.
Stress relaxation: If stretched to a fixed length, the stress required to maintain that length decreases over time as the tissue relaxes. This is important during surgical repair; initial suture tension will decrease over minutes to hours.
Hysteresis: Loading and unloading curves do not coincide; energy is dissipated as heat during each cycle. This represents internal friction and accounts for approximately 10 to 15 percent energy loss per cycle.
Rate dependence: Tendons are stiffer and stronger when loaded rapidly compared to slow loading. This explains why explosive movements generate higher forces and greater injury risk than slow controlled motions.
Exam Pearl
Classic viva question: "Describe the stress-strain curve for tendon."
Model answer: "The tendon stress-strain curve has four regions: (1) Toe region from 0 to 2 percent strain where crimp straightens with nonlinear behavior; (2) Linear region from 2 to 4 percent where collagen fibers load elastically with modulus around 1 to 2 GPa; (3) Yield region beyond 4 percent where microscopic damage occurs; and (4) Failure beyond 8 percent strain with macroscopic rupture. Ultimate tensile strength is typically 50 to 100 MPa. Tendons are also viscoelastic, showing creep, stress relaxation, and rate-dependent behavior."
Maturation and Degeneration
Developmental Changes
During fetal development and early childhood, tendons exhibit high cellularity with abundant tenoblasts actively synthesizing matrix. Collagen fibril diameter is small and relatively uniform. The ratio of type III to type I collagen is higher than in adults.
With skeletal maturation, tenocyte density decreases, cell shape becomes more elongated, and synthetic activity declines. Collagen fibril diameter increases and becomes more heterogeneous. Cross-link density and maturity increase, enhancing tensile strength. By late adolescence, tendons achieve adult composition and mechanical properties.
Adult Homeostasis
In healthy young adults (approximately 20 to 40 years), tendons exhibit slow matrix turnover with balanced synthesis and degradation. Mechanical properties are optimal, with high strength, stiffness, and fatigue resistance. Physiological loading maintains tenocyte homeostasis and matrix integrity.
Aging and Degeneration
From approximately the fourth decade onward, progressive degenerative changes occur:
Cellular changes: Tenocyte density decreases by 30 to 50 percent. Remaining cells become more rounded, less metabolically active, and exhibit senescent phenotypes with decreased responsiveness to mechanical stimuli.
Matrix changes: Total collagen content may decrease slightly. More importantly, collagen organization deteriorates with increased interfibrillar and interfascicular disarray. Fibril diameter distribution becomes more heterogeneous. Some cross-links degrade while others form aberrantly, creating areas of both increased stiffness and weakness.
Type III collagen increases in some regions, particularly in areas of microdamage. Proteoglycan content changes with decreased decorin and increased large aggregating proteoglycans, altering hydration and mechanical properties.
Vascular changes: Vascularity decreases further in already hypovascular regions, potentially impairing healing capacity. Vascular density may paradoxically increase in pathological regions (neovascularization).
Mechanical deterioration: Elastic modulus may increase (stiffer tendon) while ultimate tensile strength decreases (weaker tendon). This creates a mechanically inefficient tissue that is both less compliant and more fragile. Fatigue resistance declines, increasing susceptibility to cumulative microdamage.
Clinical Implications
Age-related degeneration explains the epidemiology of tendon ruptures, which show bimodal distribution: young athletes suffering acute traumatic ruptures of normal tendons under extreme loads, and middle-aged to older individuals experiencing ruptures of degenerative tendons under moderate loads (sometimes even spontaneous ruptures during routine activities).
Degenerative changes are not uniformly distributed; certain tendons (Achilles, rotator cuff, patellar) are particularly susceptible, while others (most flexor tendons) rarely rupture even in elderly individuals. This reflects differential loading patterns, vascular supply, and possibly genetic factors.
- Collagen fibrils arranged in quarter-stagger array with 67 nm D-period
- Decorin regulates fibril diameter by binding at specific D-period sites
- Tenocytes extend cytoplasmic processes forming mechanosensitive networks
- Enthesis transitions from tendon to bone over ~1 mm with four distinct zones
- Toe region (0-2% strain) represents crimp straightening
- Linear region (2-4% strain) reflects elastic collagen loading, modulus 1-2 GPa
- Yield occurs around 4% strain with microscopic damage accumulation
- Ultimate tensile strength 50-100 MPa, failure at 8-15% strain
Response to Mechanical Loading
Mechanobiology of Tendons
Physiological Loading
Tendons are exquisitely responsive to mechanical stimuli, with loading patterns profoundly influencing structure, composition, and mechanical properties. This mechanoadaptive capacity allows tendons to optimize their architecture for the specific demands placed upon them.
Optimal loading (appropriate magnitude, frequency, and duration) maintains tendon homeostasis and promotes beneficial adaptations:
- Tenocytes upregulate type I collagen synthesis
- Collagen fibril diameter increases and becomes more uniform
- Cross-link density and maturity improve
- Proteoglycan expression is optimized for current loading conditions
- Ultimate tensile strength and elastic modulus increase
- Fatigue resistance improves
Athletes who train consistently demonstrate tendons with 10 to 30 percent greater cross-sectional area, higher stiffness, and superior mechanical properties compared to sedentary controls. These adaptations are tendon-specific; only loaded tendons show enhancement.
Immobilization and Underloading
Insufficient mechanical stimulation leads to rapid degradation:
- Matrix synthesis decreases while degradation continues
- Net collagen loss occurs, with cross-sectional area decreasing
- Collagen fibril diameter becomes smaller and more uniform (less heterogeneity)
- Cross-links degrade, reducing tensile strength
- Glycosaminoglycan content increases, altering viscoelastic properties
- Mechanical properties deteriorate within weeks
Animal studies demonstrate 30 to 50 percent reductions in ultimate tensile strength after 8 to 12 weeks of immobilization. Recovery requires months of rehabilitation, and some deficits may be permanent.
Clinically, this explains tendon complications after prolonged immobilization (casting, bedrest) and emphasizes the importance of early controlled mobilization after tendon injuries and repairs when feasible.
Overloading and Pathological Loading
Excessive or abnormal loading can trigger pathological responses:
Acute overload beyond yield strain causes microscopic damage including fibril rupture, interfibrillar separation, and matrix disruption. If severe, this progresses to macroscopic tearing or complete rupture.
Chronic repetitive loading without adequate recovery can lead to cumulative microdamage exceeding repair capacity, resulting in tendinopathy characterized by:
- Collagen disorganization and loss of parallel alignment
- Increased type III collagen (inferior mechanical properties)
- Altered proteoglycan expression with increased large aggregating proteoglycans
- Neovascularization and neoinnervation (pain substrate)
- Tenocyte phenotype changes including increased MMP production
- Regional cell death (apoptosis) creating hypocellular areas
- Fatty infiltration or mucoid degeneration in severe cases
The mechanisms underlying the transition from physiological adaptation to pathological degeneration remain incompletely understood but likely involve exceeding cellular repair capacity, ischemia-reperfusion injury, inflammatory mediator release, and genetic susceptibility factors.
Hierarchical Organization
Tendons demonstrate organization spanning seven orders of magnitude in scale:
Molecular Level (nanometers):
- Tropocollagen: 300 nm × 1.5 nm triple helix
- Gly-X-Y amino acid repeat pattern
- Post-translational hydroxylation of proline and lysine
Fibrillar Level (nanometers to micrometers):
- Collagen fibrils: 20-400 nm diameter
- Quarter-stagger array with 67 nm D-period
- Enzymatic cross-linking via lysyl oxidase
Fiber Level (micrometers):
- Collagen fibers: 1-20 μm diameter
- Interfibrillar matrix with decorin and biglycan
- Crimp pattern visible at this scale (wavelength 50-100 μm)
Fascicular Level (micrometers to millimeters):
- Fascicles: 50-300 μm diameter
- Endotenon surrounding each fascicle
- Interfascicular sliding during excursion
Tendon Level (millimeters to centimeters):
- Complete tendon with multiple fascicles
- Epitenon inner layer, paratenon outer layer
- Synovial sheath in locations with high angular deviation
This organization is essential for efficient force transmission while allowing some internal compliance to accommodate variations in loading patterns and directions.
Crimp Pattern
The crimp pattern is a wave-like planar configuration of collagen fibers observable by polarized light microscopy in relaxed tendons. The wavelength ranges from 50 to 100 micrometers, with amplitude varying by location and loading history.
Crimp provides the structural basis for the toe region of the stress-strain curve. During initial loading, crimp straightens with minimal stress development. This allows joint motion to initiate without immediately generating high tendon forces and permits uniform stress distribution across all fibers despite minor variations in fiber length.
Loss or disorganization of crimp pattern is a feature of tendinopathy and aging, potentially contributing to altered mechanical behavior and increased injury susceptibility.
Classification
Classification of Tendons
Tendons can be classified by multiple systems based on anatomical, functional, and structural characteristics.
Classification Systems for Tendons
Collagen Type Classification
Type I Dominant (Normal)
- 95% type I collagen
- Large fibril diameter (50-400 nm)
- High tensile strength
- Mature cross-links
- Organized parallel structure
Type III Elevated (Pathological)
- Greater than 5% type III collagen
- Thinner fibrils (less than 50 nm)
- Reduced mechanical strength
- Disorganized matrix
- Seen in healing and tendinopathy
Clinical Assessment
Clinical Examination of Tendon Pathology
Clinical assessment of tendon disorders is informed by understanding structural composition and biomechanics.
History - Key Questions
Symptoms Reflecting Structural Damage:
- Pain pattern - activity-related suggests loading beyond yield point
- Morning stiffness - altered proteoglycan hydration
- Weakness - partial disruption or inhibition
- Swelling - inflammatory phase or neovascularization
- Sudden pop - macroscopic fiber rupture
Risk Factors:
- Age (reduced cellularity and matrix quality)
- Previous tendon pathology (pre-existing type III collagen)
- Fluoroquinolone use (collagen synthesis inhibition)
- Systemic diseases (diabetes, RA, renal disease)
Inspection Findings
Visual Assessment:
- Swelling - localized (sheath) vs diffuse (paratenon)
- Deformity - tendon discontinuity, retraction
- Muscle wasting - chronic denervation or disuse
- Skin changes - steroid injection sites, surgical scars
Palpation:
- Tenderness - localized to pathological zone
- Gap - palpable defect in rupture
- Thickening - chronic tendinopathy (increased type III collagen)
- Crepitus - tenosynovitis (synovial sheath inflammation)
Functional Testing
Clinical Tests and Structural Basis
Investigations
Imaging of Tendon Pathology
Imaging investigations correlate directly with structural changes in tendon composition.
Imaging Modalities for Tendon Assessment
Ultrasound Findings by Structural Change
Matrix Composition Changes
Hypoechoic Areas:
- Represent collagen disorganization
- Increased type III collagen (thinner fibrils)
- Mucoid degeneration
- Loss of parallel fiber alignment
Hyperechoic Foci:
- Calcific deposits
- Chronic degenerative changes
Vascular Changes
Power Doppler Signal:
- Neovascularization in tendinopathy
- Accompanies neoinnervation (pain source)
- Normal tendon is avascular on Doppler
- Correlates with symptom severity
Clinical Relevance:
- Target for sclerosing injections
- May guide eccentric loading protocols
Management

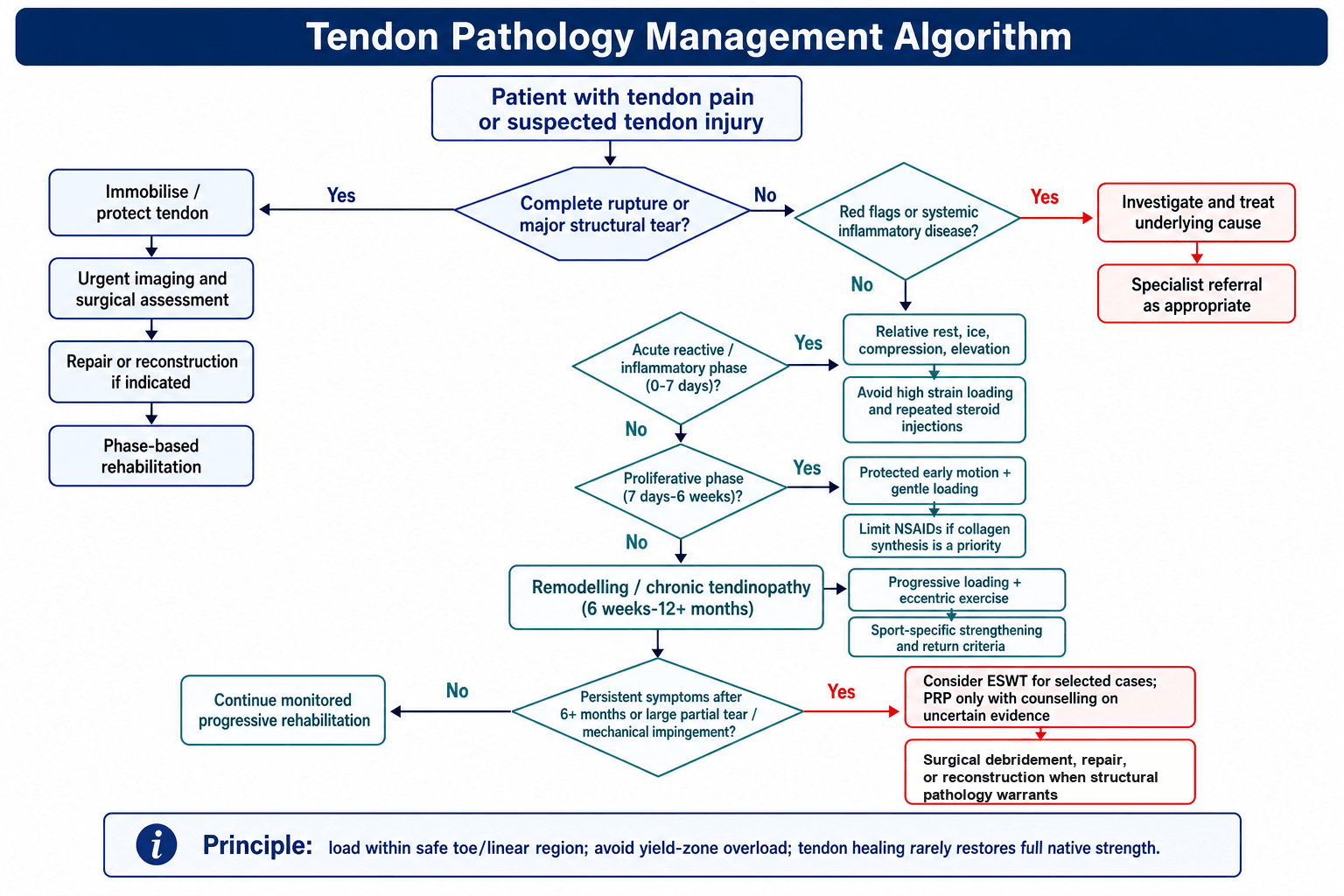

Management Principles Based on Tendon Biology
Management of tendon pathology is guided by understanding structural composition, healing phases, and biomechanical requirements.
Conservative Management
Load Management (Based on Stress-Strain Curve):
- Keep loads within toe and linear regions (less than 4% strain)
- Avoid yield zone loading during active pathology
- Gradual progressive loading to stimulate matrix synthesis
Eccentric Loading Protocols:
- Stimulates tenocyte collagen production
- Promotes type I over type III collagen synthesis
- Improves fibril alignment and cross-linking
- Evidence strongest for Achilles and patellar tendinopathy
Pharmacological Options
NSAIDs:
- May impair collagen synthesis in early healing
- Short-term use for pain management
- Avoid during proliferative phase if possible
Corticosteroid Injections:
- Short-term pain relief
- Inhibit collagen synthesis (tenocyte suppression)
- Associated with tendon weakening and rupture risk
- Avoid repeated injections
Treatment Based on Healing Phase
Phase-Specific Management
Surgical Technique
Surgical Principles Based on Tendon Biology
Tendon repair and reconstruction techniques are designed around the structural hierarchy and healing biology of tendons.
Suture Technique Principles
Core Suture Design:
- Multiple strands increase strength (2-strand vs 4-strand vs 6-strand)
- Grasping sutures stronger than locking sutures
- Suture-tendon interface is weakest link initially
- 2-3 mm purchase from cut end optimal
Epitendinous Suture:
- Running circumferential suture
- Prevents bunching and gap formation
- Adds 10-50% to repair strength
- Improves gliding surface
Handling and Vascularity
Minimal Tissue Trauma:
- Avoid crushing with forceps (damages tenocytes)
- Preserve paratenon/sheath for blood supply
- Preserve vincula in flexor tendon repair
- Limited dissection to maintain vascular pedicles
Gap Prevention:
- Gap greater than 2-3 mm associated with adhesion and weakness
- Adequate suture tension at repair
- Account for stress relaxation over time
Repair Strength Progression
Phases of Repair Strength
Complications
Complications Related to Tendon Structure and Healing
Complications of tendon pathology and repair are directly linked to the structural and biological properties of tendons.
Repair Failure
Mechanisms:
- Suture pullout through degenerative tissue
- Gap formation from stress relaxation
- Inadequate biological healing
- Excessive early loading
Structural Basis:
- Type III collagen in chronic tendinopathy cannot hold sutures
- Initial repair strength is suture-dependent (0-6 weeks)
- Biological healing provides only 50-80% of original strength
Adhesion Formation
Mechanisms:
- Scar bridges between tendon and surrounding tissues
- Loss of gliding surfaces (sheath disruption)
- Excessive immobilization
Structural Basis:
- Tendon healing produces fibrovascular scar
- Disrupted synovial sheath loses lubricating function
- Motion required to prevent adhesion maturation
Complications by Structural Mechanism
Postoperative Care
Rehabilitation Principles Based on Tendon Biology
Postoperative care protocols are designed around the phases of tendon healing and biomechanical properties.
Rehabilitation Phases and Biological Rationale
Key Rehabilitation Concepts
Early Controlled Motion
Biological Benefits:
- Prevents adhesion formation (scar maturation)
- Stimulates tenocyte collagen synthesis
- Promotes aligned collagen fiber deposition
- Maintains gliding surface
Clinical Application:
- Flexor tendon: Kleinert or modified Duran protocols
- Achilles: Controlled ankle motion (CAM) boot
- Rotator cuff: Passive motion protocols
Progressive Loading
Biological Benefits:
- Increases collagen cross-linking
- Promotes type I over type III collagen
- Improves fibril alignment
- Increases ultimate tensile strength
Loading Principles:
- Start within toe region of stress-strain curve
- Progress to linear region as healing advances
- Avoid yield zone until late remodeling phase
- Eccentric loading may be particularly beneficial
Outcomes
Outcomes of Tendon Healing and Repair
Understanding expected outcomes is essential for patient counseling and realistic goal-setting, informed by the biological limitations of tendon healing.
Expected Outcomes by Tendon Location
Evidence Base
Key Evidence on Tendon Structure and Healing
The understanding of tendon biology is built on foundational studies in biomechanics, biochemistry, and clinical research.
- Tropocollagen molecules (300 nm) assemble in quarter-stagger array creating 67 nm D-period
- Type I collagen comprises 95% of normal tendon collagen content
- Decorin regulates collagen fibril diameter by binding at D-period sites
- Crimp pattern (50-100 μm wavelength) creates mechanical buffer in toe region
- Toe region (0-2% strain) represents crimp straightening
- Linear region (2-4% strain) reflects elastic collagen fiber loading with modulus 1-2 GPa
- Yield region begins around 4% strain with microscopic damage accumulation
- Failure occurs at 8-15% strain with ultimate tensile strength 50-100 MPa
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination
"An examiner presents an electron micrograph showing striated collagen fibrils and asks you to explain the molecular basis of the banding pattern, then proceeds to question you about the hierarchical organization of tendon structure from molecular to tissue level."
MCQ Practice Points
Exam Pearl
Q: What is the hierarchical structure of tendon and what is the predominant collagen type?
A: Tendon has hierarchical structure: Collagen molecule (tropocollagen) assembles into microfibrils, which form subfibrils, then fibrils (visible on EM), then fibers (visible on light microscopy), then fascicles (surrounded by endotenon), then the whole tendon (surrounded by epitenon and paratenon). The predominant collagen is Type I (95%) with small amounts of Type III (increases in healing/degeneration), Type V (regulates fibril diameter), and Type XII. Collagen fibrils have a characteristic crimp pattern (wave-like) that allows initial elongation without structural damage.
Exam Pearl
Q: What is the role of the endotenon, epitenon, and paratenon in tendon structure?
A: Endotenon: Loose connective tissue surrounding individual fascicles; carries blood vessels, lymphatics, and nerves; allows fascicles to glide against each other. Epitenon: Dense connective tissue surrounding the entire tendon; continuous with endotenon; contains blood vessels. Paratenon: Loose areolar tissue external to epitenon; present in tendons without synovial sheath (Achilles, patellar); allows gliding against surrounding tissues. Tendons with synovial sheath (flexor tendons in hand) have visceral and parietal layers instead of paratenon. The mesotenon (vinculum) carries blood supply.
Exam Pearl
Q: What is the crimp pattern in tendons and what is its functional significance?
A: The crimp pattern is the characteristic wavy or sinusoidal arrangement of collagen fibrils in tendon. It represents a "toe region" in the stress-strain curve - when tendon is loaded, the crimp straightens first (low stiffness), then the straightened fibers resist load (linear region, high stiffness). Functional significance: 1) Acts as shock absorber allowing initial elongation (1-2% strain) without structural damage; 2) Provides energy storage for explosive movements; 3) Loss of crimp (during chronic loading) leads to tendinosis with decreased shock absorption. Crimp is re-established during healing but may be disorganized.
Exam Pearl
Q: What is the blood supply to tendons and how does it vary along the tendon length?
A: Blood supply comes from: 1) Musculotendinous junction - muscle vessels extend into tendon; 2) Bone-tendon junction (enthesis); 3) Along the tendon - via paratenon (unsheathed tendons) or vincula/mesotenon (sheathed tendons). Watershed zones (hypovascular areas) occur where supplies meet, making these areas prone to degeneration: Achilles tendon 2-6cm proximal to insertion, supraspinatus near insertion ("critical zone"), FPL at level of sesamoids. Tendon nutrition also occurs by diffusion from synovial fluid (especially in sheathed tendons).
Exam Pearl
Q: What are the cellular components of tendon and their functions?
A: Tenocytes (90-95% of cells): Specialized fibroblasts arranged in longitudinal rows between collagen fibers; synthesize collagen and extracellular matrix; connected by gap junctions for mechanotransduction; elongated with wing-like cytoplasmic extensions. Tendon stem/progenitor cells: Small population that can differentiate into tenocytes; important for healing and regeneration. Synovial cells: Line tendon sheath, produce synovial fluid. Vascular cells: Endothelial cells, pericytes. In tendinopathy, there is increased cellularity, neovascularization, and changes from Type I to Type III collagen with disorganized matrix.
Australian Context
Australian Research and Clinical Considerations
Australia has made significant contributions to tendon research, particularly through the work of sports medicine researchers and physiotherapists.
Australian Research Contributions
Tendinopathy Continuum Model:
- Developed by Jill Cook and Craig Purdam (La Trobe University)
- Framework for understanding progressive tendon pathology
- Guides stage-appropriate treatment decisions
- Internationally adopted model
Loading Management Research:
- Melbourne and Sydney research groups
- Eccentric and isometric loading protocols
- Return to sport criteria development
- Rehabilitation biomechanics
Clinical Practice
Common Tendon Presentations:
- Achilles tendinopathy (running sports, AFL, cricket)
- Patellar tendinopathy (basketball, volleyball, AFL)
- Rotator cuff pathology (swimming, tennis, cricket)
- Lateral epicondylitis (tennis, golf, trades)
Sports Medicine Networks:
- Australian Institute of Sport (AIS) research programs
- State sports institutes
- Professional sports team medical staff
- Multidisciplinary rehabilitation approach
Training and Resources
Australian Orthopaedic Training:
- Basic science curriculum includes tendon biology
- Examined in Part 1 and Part 2 (basic science vivas)
- Understanding structure-function relationships emphasized
- Clinical correlation expected in examinations
Tendon Structure and Composition - Exam Essentials
High-Yield Exam Summary
Hierarchical Organization (Smallest → Largest)
- •Tropocollagen: 300 nm × 1.5 nm, triple helix, Gly-X-Y pattern
- •Fibril: 20-400 nm diameter, 67 nm D-period from quarter-stagger
- •Fiber: 1-20 μm diameter, crimp pattern visible (50-100 μm wavelength)
- •Fascicle: 50-300 μm diameter, surrounded by endotenon
- •Tendon: Multiple fascicles, epitenon + paratenon layers
Collagen Types - Know the Percentages
- •Type I: 95% of total, heterotrimeric (2α1 + 1α2), primary tensile strength
- •Type III: Less than 5% normally, increases in healing/tendinopathy (can reach 50%)
- •Type V: 2-3%, regulates fibril diameter, in fibril core
- •Type VI: Less than 1%, interfibrillar cohesion, beaded microfibrils
- •Type X: At enthesis, fibrocartilaginous insertion zone

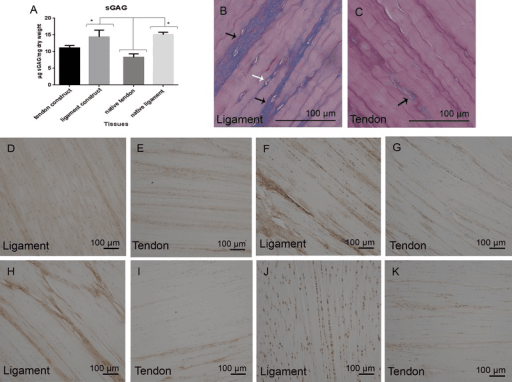

Key Proteoglycans - Regulators of Structure
- •Decorin: Most abundant SLRP, regulates fibril diameter by binding at D-period sites
- •Biglycan: Similar to decorin, distinct regulatory functions
- •Aggrecan: In compressed regions (enthesis, wraparound zones), compressive resistance
- •COMP: Compressed regions, potential healing biomarker
- •All SLRPs decreased in tendinopathy → abnormal fibril geometry
Stress-Strain Curve - Must Know for Viva
- •Toe region (0-2% strain): Crimp straightening, nonlinear, compliant
- •Linear region (2-4% strain): Elastic collagen loading, modulus 1-2 GPa
- •Yield point (~4% strain): Microscopic damage begins, permanent deformation
- •Failure (8-15% strain): Macroscopic rupture, UTS 50-100 MPa
- •Viscoelastic: Creep, stress relaxation, hysteresis (10-15% energy loss), rate-dependent
Enthesis - Four Zones of Insertion
- •Zone 1: Tendon proper - type I collagen, longitudinal tenocytes
- •Zone 2: Uncalcified fibrocartilage - type II collagen, aggrecan, chondrocytes
- •Zone 3: Calcified fibrocartilage - same as zone 2 but mineralized, tidemark boundary
- •Zone 4: Bone - osteocytes, Sharpey fibers anchor tendon to bone
- •Gradient: Modulus 200 MPa (tendon) → 20 GPa (bone) over ~1 mm
Vascular Supply - Watershed Zones
- •Generally poor vascularity (1-2% of cross-sectional area)
- •Three sources: Musculotendinous junction, osseous insertion, peritendinous tissues
- •Achilles watershed: 2-6 cm proximal to insertion (common rupture site)
- •Supraspinatus critical zone: Near insertion, hypovascular (common tear location)
- •Poor vascularity → slow healing, ischemic injury susceptibility
Age-Related Changes - Degeneration Pattern
- •Decreased tenocyte density (30-50% reduction), cells become rounded
- •Increased collagen disorganization, heterogeneous fibril diameter
- •Increased type III collagen in damaged areas
- •Decreased decorin, increased aggrecan (altered proteoglycan profile)
- •Mechanical: Increased stiffness BUT decreased strength (stiff + fragile = injury-prone)

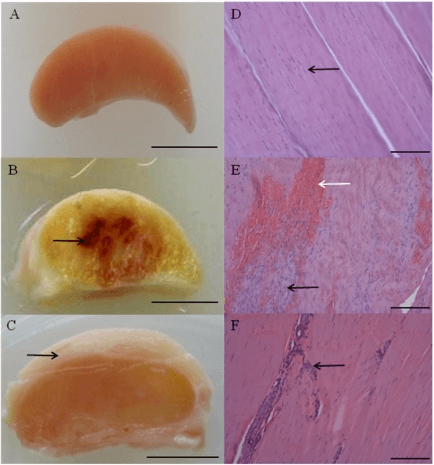

Tendinopathy Pathology - Structural Changes
- •Type III collagen up to 50% (normally less than 5%)
- •Loss of parallel fiber alignment, matrix disorganization
- •Altered proteoglycans (decreased decorin, increased aggrecan)
- •Neovascularization + neoinnervation (pain substrate)
- •Mechanical deficits: 30-50% reduced UTS, impaired fatigue resistance
High-Yield Numbers for MCQs
- •Tropocollagen: 300 nm long, 1.5 nm diameter
- •D-period: 67 nm (quarter of 300 nm = 75 nm, but actual is 67 nm due to molecular overlap)
- •Type I collagen: 95% of total collagen
- •Elastic modulus: 1-2 GPa (linear region)
- •UTS: 50-100 MPa, Failure strain: 8-15%
- •Crimp wavelength: 50-100 μm, Toe region: 0-2% strain
Summary
Tendons are sophisticated composite materials with hierarchical organization spanning from molecular to tissue levels. Type I collagen provides the primary structural framework, regulated by proteoglycans that control fibril assembly and mechanical properties. Tenocytes maintain matrix homeostasis and respond to mechanical loading through complex mechanotransduction pathways.
The characteristic stress-strain behavior reflects underlying structural features, with the toe region corresponding to crimp straightening and the linear region representing elastic collagen loading. Viscoelastic properties including creep, stress relaxation, and rate dependence have important clinical implications for rehabilitation and surgical decision-making.
Age-related degeneration, pathological loading, and inadequate healing capacity contribute to tendinopathy and rupture. Understanding tendon structure and composition at multiple scales is essential for comprehending disease mechanisms, interpreting imaging findings, optimizing surgical techniques, and developing effective rehabilitation protocols.
For examination purposes, focus on hierarchical organization, collagen composition (especially type I versus type III), the stress-strain curve with specific strain values, enthesis zonal anatomy, and the structural basis of tendinopathy. These topics are consistently emphasized in basic science vivas and MCQs.
